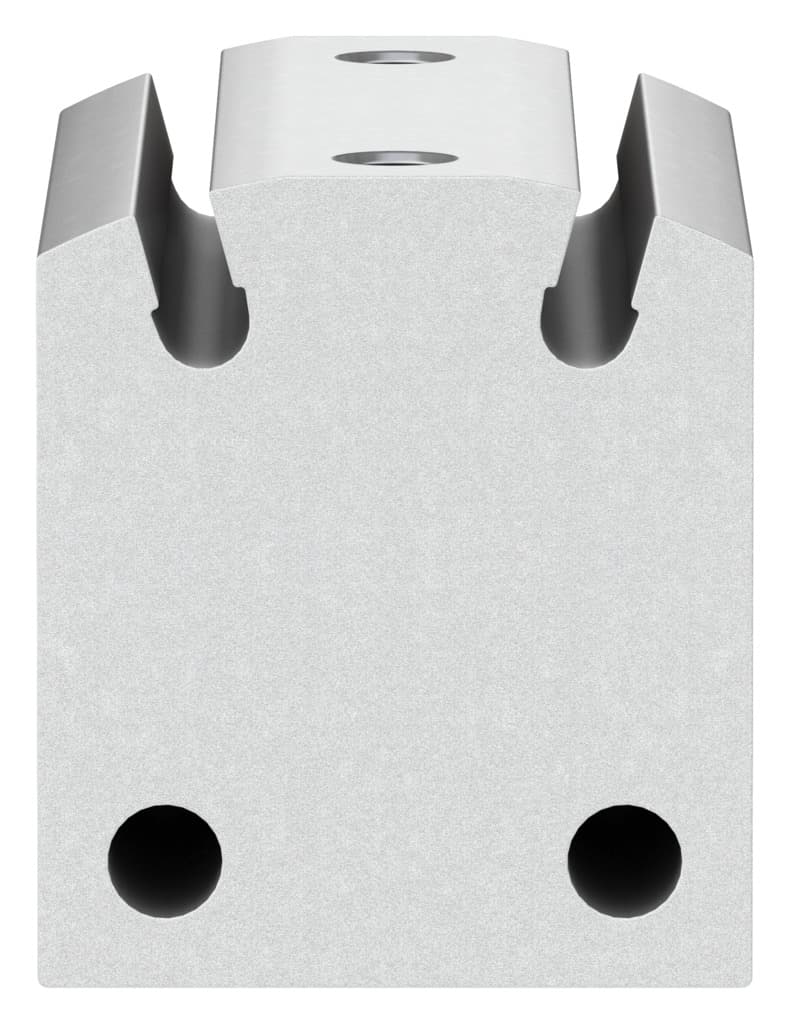

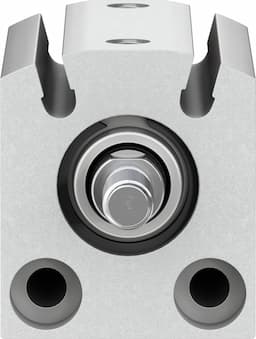

Product Model

advc-16-20-a-p-a

Manufacturer

Festo

Key Features

1Flexible Cushioning Rings/Plates: Ensures smooth operation and reduces wear on the cylinder.
2Double-Acting Operation: Allows for both forward and backward motion, enhancing versatility.
3Proximity Sensing Capability: Designed for applications requiring precise position detection.
4Corrosion Resistance: Classified as CRC 1, suitable for environments with low corrosion stress.
5Compact Design: Features a stroke of 20 mm and a piston diameter of 16 mm, making it ideal for space-constrained applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	20mm	Piston diameter	16 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	90N	Theoretical force at 6 bar, advancing	121N
Moving mass	21g	Moving mass at 0?mm stroke	13g
Additional moving mass per 10?mm stroke	4g	Product weight	110g
Basic weight with 0?mm stroke	69g	Additional weight per 10?mm stroke	20g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188121

Specifications may be subject to change without notice
