Product Model

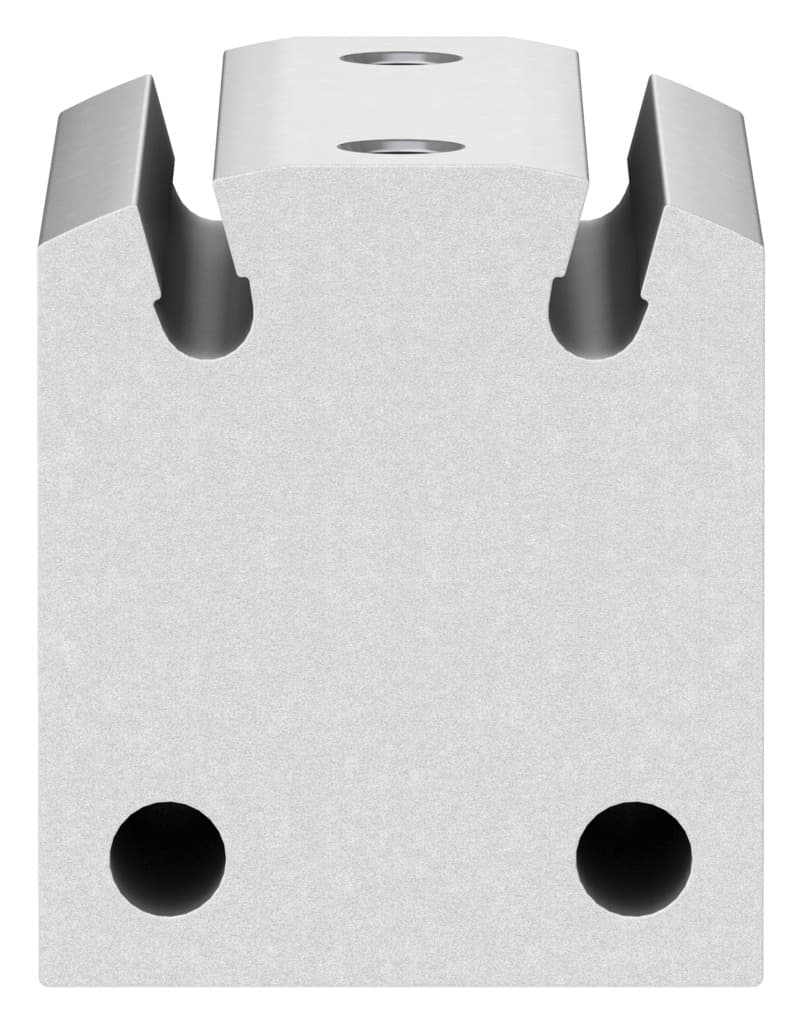

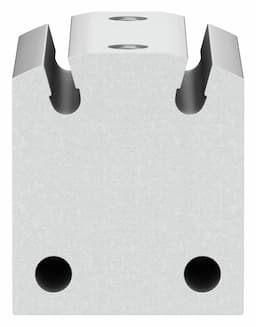

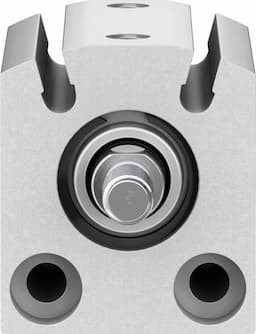

advc-16-15-a-p-a

Manufacturer

Festo

Key Features

1High Precision: Designed for precise operations with a stroke length of 15 mm and piston diameter of 16 mm.
2Flexible Cushioning: Equipped with flexible cushioning rings/plates at both ends for smooth operation.
3Double-Acting: Capable of both retracting and advancing, enhancing versatility in applications.
4Low Corrosion Stress: Classified as CRC 1, ensuring low corrosion stress in various environments.
5Wide Operating Range: Compatible with compressed air (ISO 8573-1:2010 [7:4:4]) and operating pressures from 1 to 10 bar.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	15mm	Piston diameter	16 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod
Position sensing	For proximity sensor	Symbol	00991217
Operating pressure	14.5psi 145psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-20°C 80°C
Theoretical force at 6 bar, retracting	90N	Theoretical force at 6 bar, advancing	121N
Moving mass	19g	Moving mass at 0?mm stroke	13g
Additional moving mass per 10?mm stroke	4g	Product weight	100g
Basic weight with 0?mm stroke	69g	Additional weight per 10?mm stroke	20g
Type of mounting	Optionally: With through-hole With accessories	Pneumatic connection	M5
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy Anodized
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy Anodized
Piston rod material	High-alloy steel	Manufacturer ID	188120

Specifications may be subject to change without notice
