Product Model
adn-s-6-10-i-f1a
Key Features

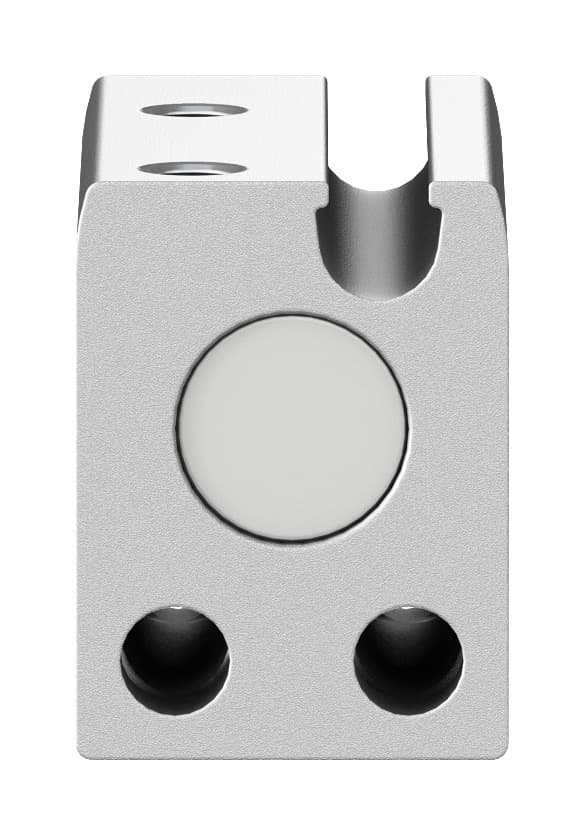

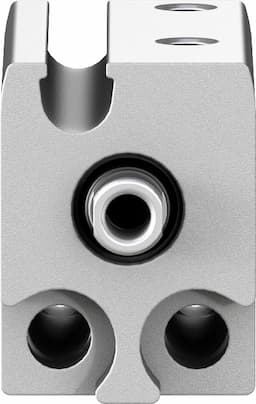

- 1The ADN-S-6-10-I-F1A features a compact design with a stroke of 10 mm and a piston diameter of 6 mm, making it ideal for space-constrained applications.
- 2This cylinder operates double-acting, allowing for both extension and retraction strokes, enhancing its versatility in various industrial settings.
- 3Specifically recommended for production plants manufacturing lithium-ion batteries, ensuring high-quality components are used in critical applications.
- 4With a corrosion resistance class of CRC 2 (Moderate corrosion stress), this cylinder is suitable for environments where moderate corrosion is a concern.
- 5Made from high-alloy stainless steel for the piston rod and anodized wrought aluminum alloy for the housing, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 6 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Symbol | 00991215 |
| Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end | Operating pressure | 21.75psi 116psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 60°C | Impact energy in the end positions | 0.006J |
| Theoretical force at 6 bar, retracting | 9.4N | Theoretical force at 6 bar, advancing | 17N |
| Moving mass | 2.3g | Product weight | 11.9g |
| Type of mounting | With through-hole | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized Anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 8142510 |
Specifications may be subject to change without notice
