Product Model

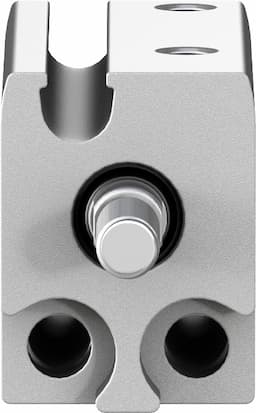

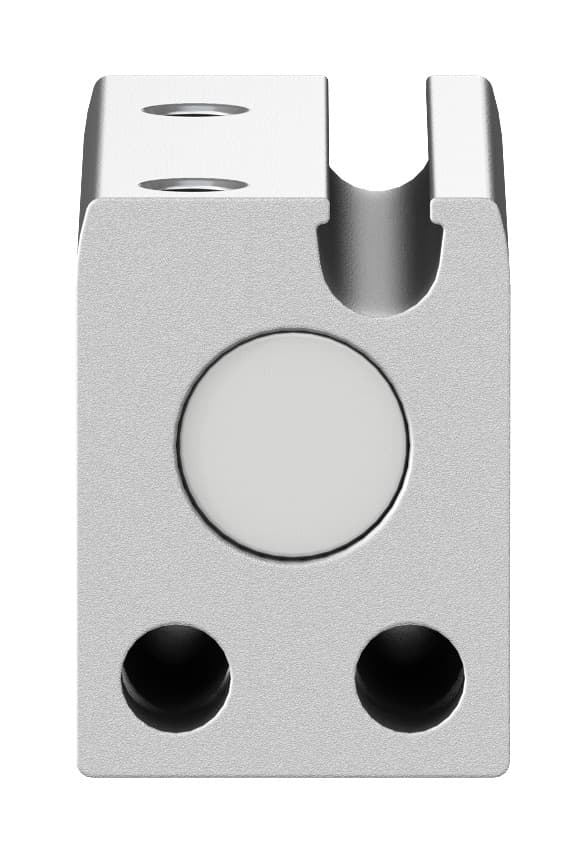

adn-s-6-10-a-a
Key Features
- 1Ultra-compact design for tight spaces.
- 2High performance in small movements.
- 3Lightweight and space-saving.
- 4Ideal for applications requiring precise control.
- 5Compatible with compressed air to ISO 8573-1:2010 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 6 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991216 | Variants | Piston rod at one end |
| Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 60°C | Impact energy in the end positions | 0.006J |
| Theoretical force at 6 bar, retracting | 9.4N | Theoretical force at 6 bar, advancing | 17N |
| Moving mass | 2.4g | Product weight | 15g |
| Type of mounting | With through-hole | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 8080595 |
Specifications may be subject to change without notice
