Product Model

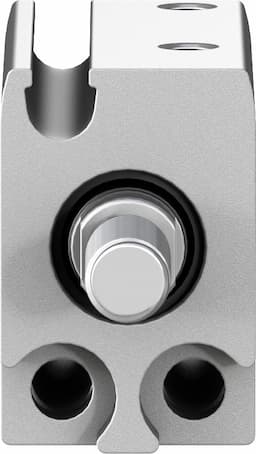

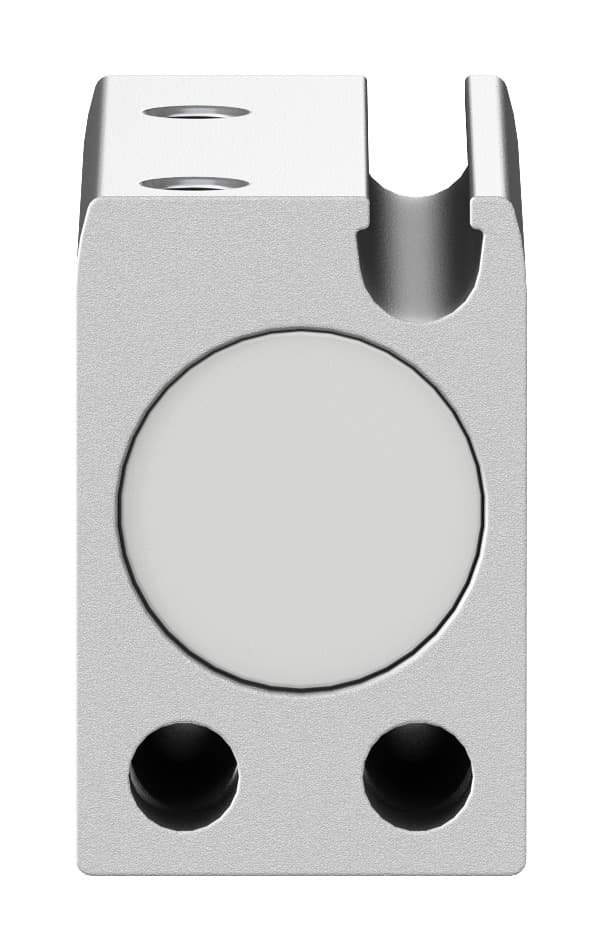

adn-s-10-10-a-a
Key Features
- 1High Precision & Durability: Built with high-alloy stainless steel piston rod and anodized wrought aluminum alloy housing.
- 2Compact Design: 10mm stroke and 10mm piston diameter for efficient use in tight spaces.
- 3Double-Acting Operation: Suitable for applications requiring simultaneous forward and backward movement.
- 4Corrosion Resistance: Meets CRC 2 standards, ensuring moderate corrosion stress resistance.
- 5Easy Installation: Compatible with M3 pneumatic connections and through-hole mounting for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 10 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991216 | Variants | Piston rod at one end |
| Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 60°C | Impact energy in the end positions | 0.012J |
| Theoretical force at 6 bar, retracting | 30.2N | Theoretical force at 6 bar, advancing | 47N |
| Moving mass | 5.7g | Product weight | 19g |
| Type of mounting | With through-hole | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 8080590 |
Specifications may be subject to change without notice
