Product Model

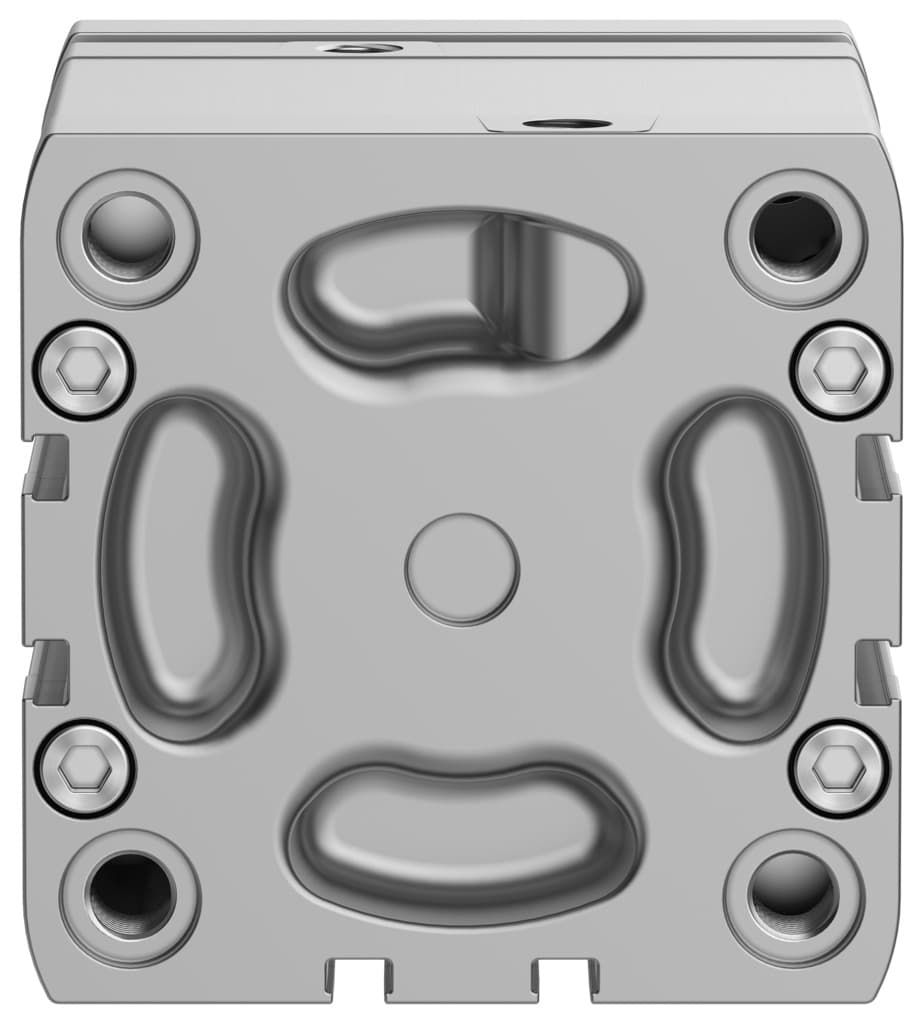

adngf-80-40-pps-a
Key Features
- 1Compact Design: Ideal for space-constrained applications.
- 2Self-Adjusting Cushioning: Ensures smooth operation and reduces wear.
- 3Double-Acting Operation: Supports both forward and reverse movements.
- 4High Corrosion Resistance: Made with RoHS-compliant materials for durability.
- 5Versatile Mounting: Can be mounted in any position for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 40mm | Piston diameter | 80 mm |
| Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.4bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 8J |
| Cushioning length | 7.5mm | Theoretical force at 6 bar, retracting | 2827N |
| Theoretical force at 6 bar, advancing | 3016N | Moving mass | 940g |
| Product weight | 1863g | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 574063 |
Specifications may be subject to change without notice
