Product Model
adngf-80-20-pps-a
Key Features

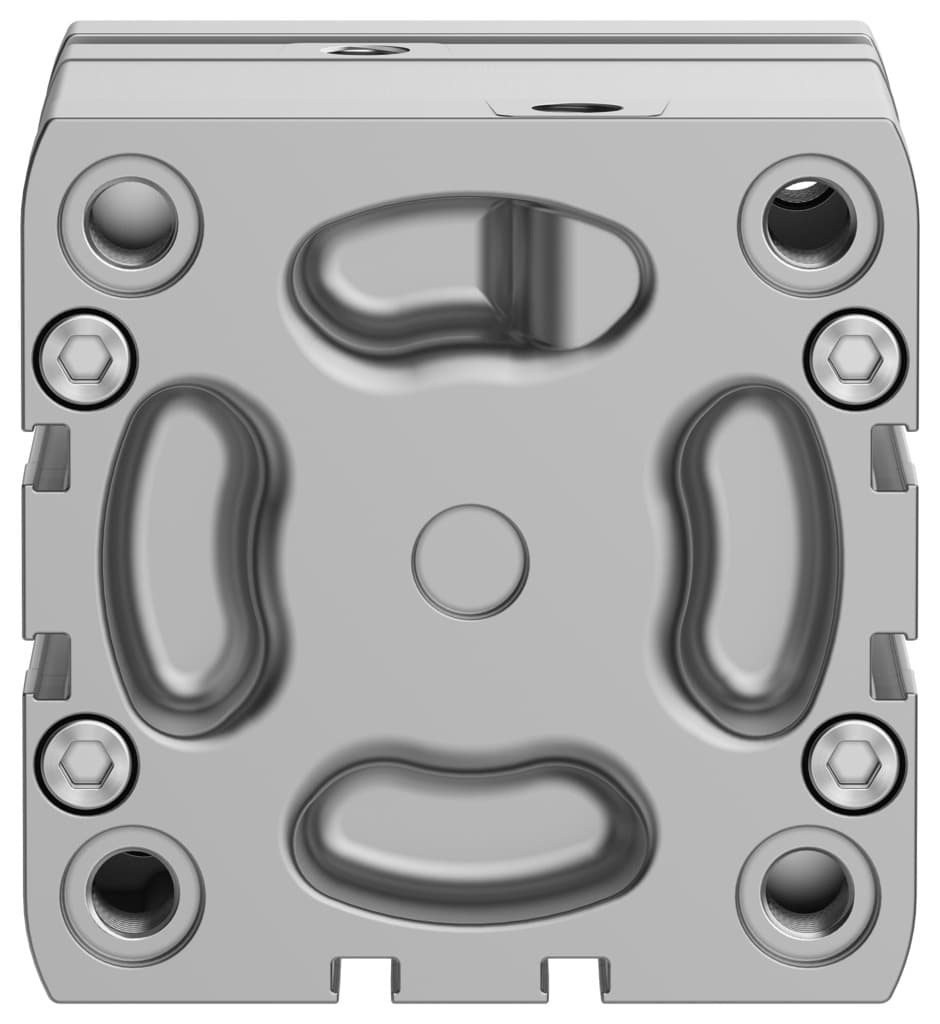

- 1Compact double-acting pneumatic air cylinder with 80mm bore and 20mm stroke.
- 2Anti-rotation/torsion protection via guide rods and yoke plate for enhanced stability.
- 3Built-in magnet for position sensing via proximity sensor, ensuring precise control.
- 4Self-adjusting cushioning at both ends for smooth operation and reduced wear.
- 5Compatible with compressed air as per ISO8573-1;2010, suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 80 mm |
| Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.4bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 8J |
| Cushioning length | 7.5mm | Theoretical force at 6 bar, retracting | 2827N |
| Theoretical force at 6 bar, advancing | 3016N | Moving mass | 855g |
| Product weight | 1669g | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 574060 |
Specifications may be subject to change without notice
