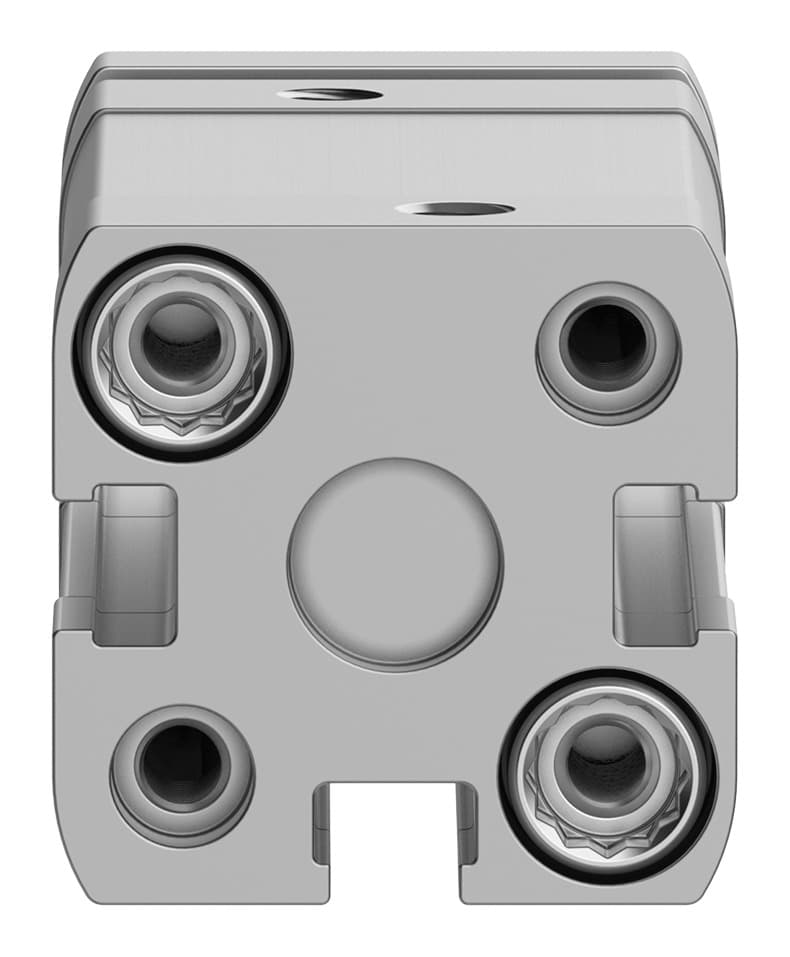

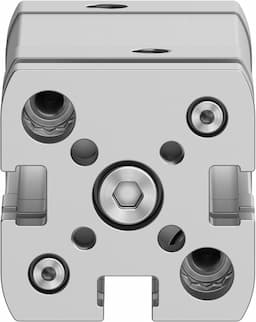

Product Model
adngf-5/8"-3/4"-p-a
Key Features
- 1Equipped with flexible cushioning rings/plates at both ends for enhanced durability and performance.
- 2Meets the international standard ISO 21287 for precision and reliability in pneumatic systems.
- 3Supports double-acting mode, allowing for both extension and retraction strokes with equal force.
- 4Features sensor slots on three sides for easy integration with proximity sensors, enhancing position detection.
- 5Offers moderate corrosion resistance (CRC 2) and is made from high-alloy steel for durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 19.05mm | Piston diameter | 5/8" |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.1505J |
| Theoretical force at 6 bar, retracting | 90.001N | Theoretical force at 6 bar, advancing | 121.001N |
| Moving mass at 0?mm stroke | 29.115g | Additional moving mass per 10?mm stroke | 16.046g |
| Basic weight with 0?mm stroke | 93.328g | Additional weight per 10?mm stroke | 6.01g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | 10-32 UNF-2B |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | NBR | Material of dynamic seals | TPE-U(PU) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 557208 |
Specifications may be subject to change without notice
