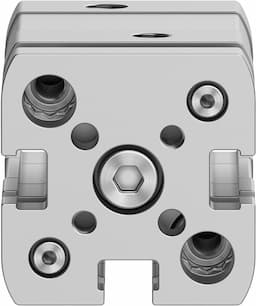

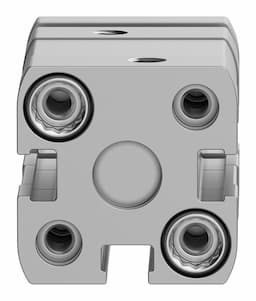

Product Model
adngf-5/8"- -
Key Features
- 1Compact Design: The ADNGF-5/8" cylinder offers a compact profile with a stroke range of 0.039 in to 7.87 in.
- 2Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation and reduced wear.
- 3Double-Acting Operation: Designed for double-acting operation, allowing for both extension and retraction strokes.
- 4Corrosion Resistance: Meets corrosion resistance class (CRC) 2, ensuring moderate corrosion stress and durability.
- 5Versatile Mounting Options: Available for mounting with through-hole, internal thread, or accessories, providing flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 0.9906mm 199.9996mm | Piston diameter | 5/8" |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Variants | Through piston rod |
| Protection against torsion/guide | Guide rod with yoke | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.1505J | Theoretical force at 6 bar, retracting | 90.001N |
| Theoretical force at 6 bar, advancing | 90.001N 121.001N | Moving mass at 0?mm stroke | 29.115g |
| Additional moving mass per 10?mm stroke | 16.046g | Basic weight with 0?mm stroke | 93.328g |
| Additional weight per 10?mm stroke | 6.01g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | 10-32 UNF-2B | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | NBR |
| Material of dynamic seals | TPE-U(PU) | End plate material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 557205 |
Specifications may be subject to change without notice
