Product Model

adngf-40-60-pps-a

Manufacturer

Festo

Key Features

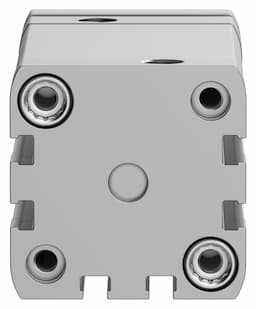

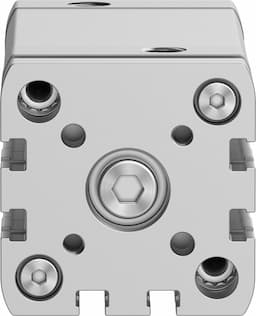

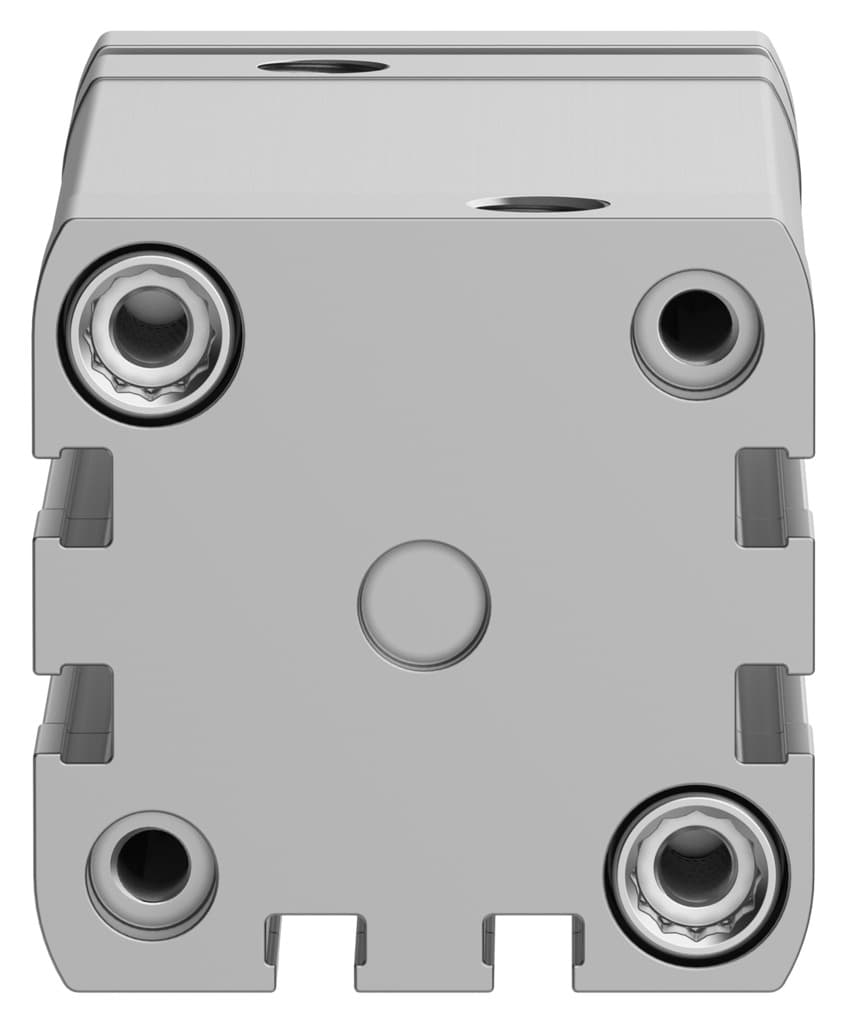

1High-Performance Design: Compact cylinder with a stroke of 60 mm and piston diameter of 40 mm, based on ISO 21287 standards.
2Self-Adjusting Cushioning: PPS cushioning ensures smooth operation and reduces wear on the cylinder.
3Versatile Mounting: Can be mounted in any position, offering flexibility in application setup.
4Enhanced Load Capacity: Guide rod and yoke plate design increases load capacity for heavy-duty applications.
5Corrosion Resistance: Moderate corrosion resistance class CRC 2, suitable for various industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	60mm	Piston diameter	40 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.4bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	1.7J
Cushioning length	5mm	Theoretical force at 6 bar, retracting	686N
Theoretical force at 6 bar, advancing	754N	Moving mass	285g
Product weight	719g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574038

Specifications may be subject to change without notice
