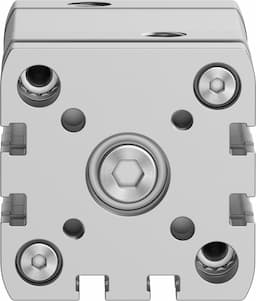

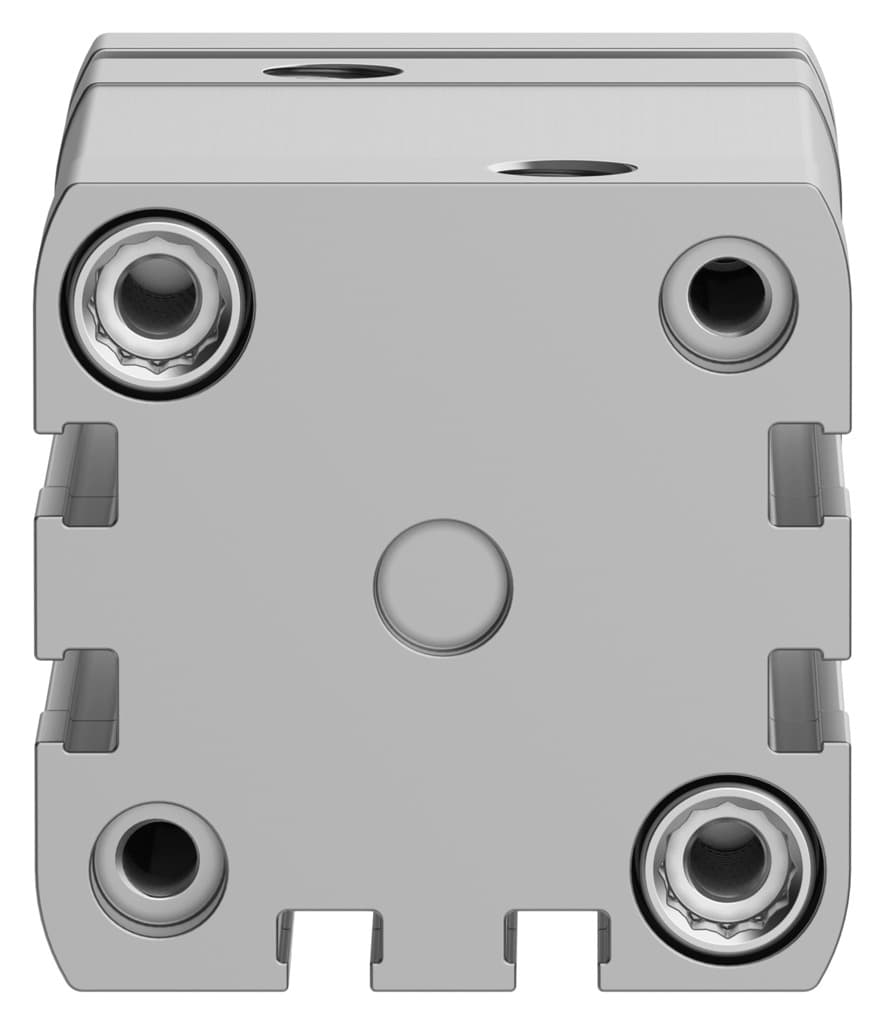

Product Model

adngf-40-30-pps-a

Manufacturer

Festo

Key Features

1Compact Design: 40mm piston diameter and 30mm stroke for efficient space utilization.
2Self-Adjusting Cushioning: Pneumatic end-position cushioning ensures smooth operation and reduces wear.
3Standard Hole Pattern: Easy integration with various mounting options and accessories.
4High Corrosion Resistance: Moderate corrosion stress resistance class CRC for durability in harsh environments.
5Comprehensive Support: Free lifetime tech support and free shipping on orders over $1,000.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	30mm	Piston diameter	40 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.4bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	1.7J
Cushioning length	5mm	Theoretical force at 6 bar, retracting	686N
Theoretical force at 6 bar, advancing	754N	Moving mass	234g
Product weight	581g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574035

Specifications may be subject to change without notice
