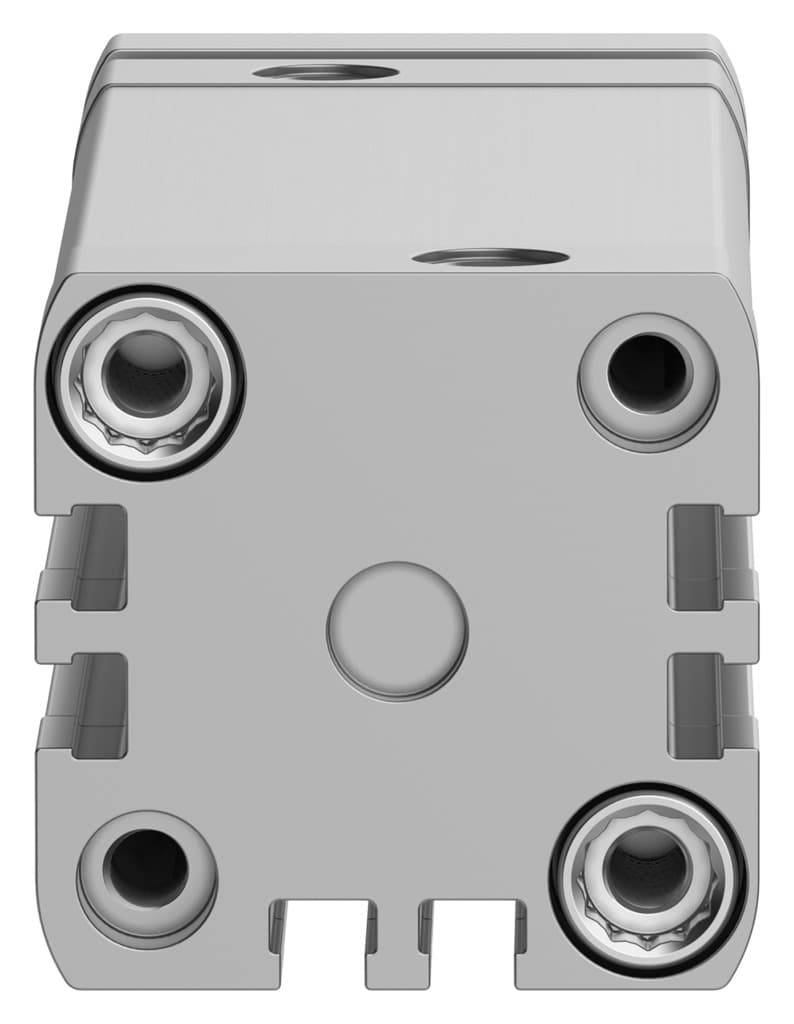

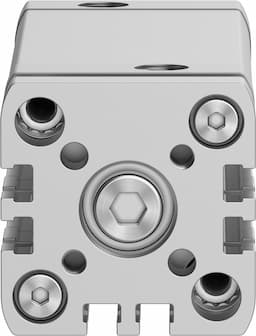

Product Model

adngf-32-80-pps-a

Manufacturer

Festo

Key Features

1High Load Capacity: Enhanced by guide rods and yoke plate for increased performance.
2Self-Adjusting Cushioning: PPS: Self-adjusting pneumatic end-position cushioning ensures smooth operation.
3Precision Assembly: Suitable for any assembly position, ensuring versatility in applications.
4Compressed Air Operation: Compatible with ISO8573-1:2010 [7:4:4] standards for reliable operation.
5Corrosion Resistance: Moderate corrosion stress classification (CRC 2) for durable use in various environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	80mm	Piston diameter	32 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.9bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	1J
Cushioning length	4mm	Theoretical force at 6 bar, retracting	415N
Theoretical force at 6 bar, advancing	483N	Moving mass	266g
Product weight	615g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Wrought aluminum alloy, anodized	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	574030

Specifications may be subject to change without notice
