Product Model

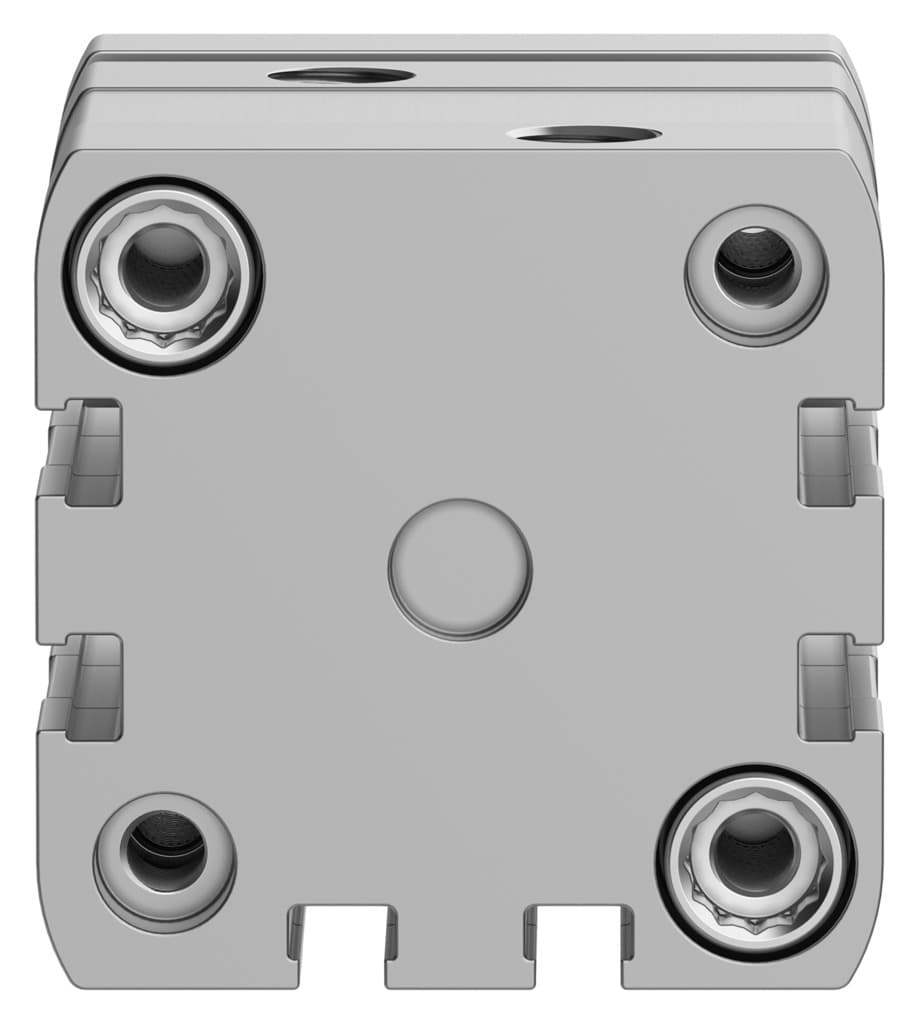

adngf-1 5/8"-1/4"-p-a
Key Features
- 10.25 in stroke and 1 5/8 in piston diameter for space-efficient applications.
- 2Flexible cushioning rings/plates at both ends for smooth operation.
- 3Moderate corrosion stress with CRC 2 classification for durability.
- 4Suitable for both forward and return strokes with 0.1 MPa to 1 MPa operating pressure.
- 5Position detection via proximity switch for precise control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 6.35mm | Piston diameter | 1 5/8" |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.6996J |
| Theoretical force at 6 bar, retracting | 686N | Theoretical force at 6 bar, advancing | 754N |
| Moving mass at 0?mm stroke | 164.6g | Additional moving mass per 10?mm stroke | 45.162g |
| Basic weight with 0?mm stroke | 431.544g | Additional weight per 10?mm stroke | 17.067g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | 1/8 NPT |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | NBR | Material of dynamic seals | TPE-U(PU) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 557242 |
Specifications may be subject to change without notice
