Product Model

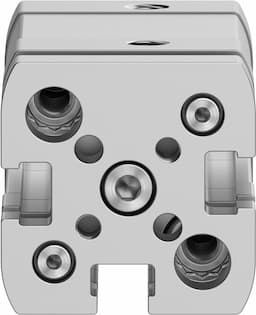

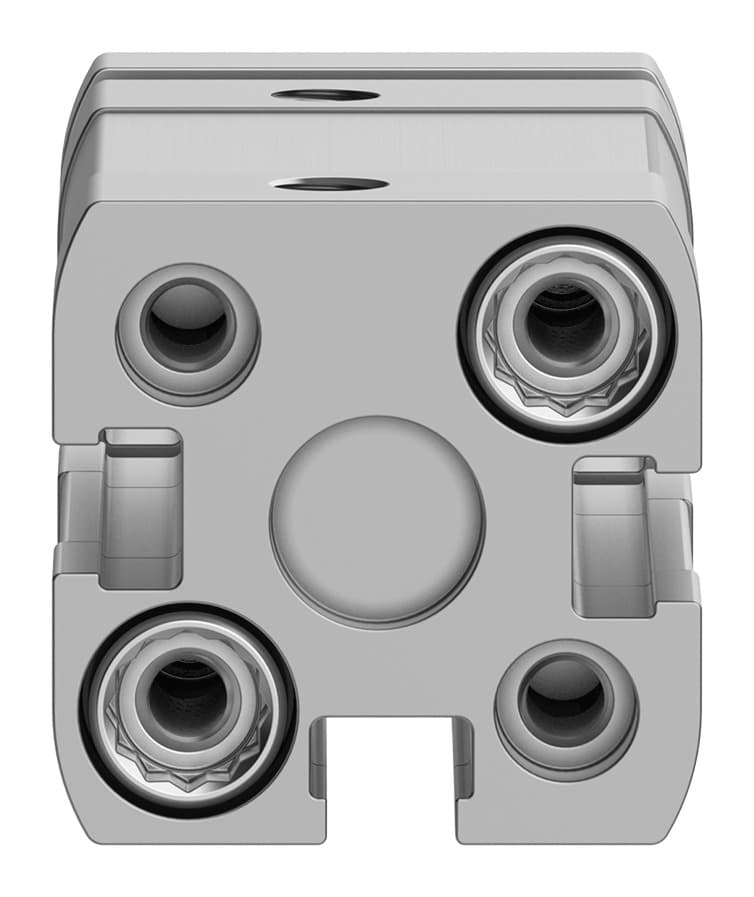

adngf-12-10-p-a
Key Features
- 1The Festo ADNGF-12-10-P-A compact cylinder is designed with elastic silencer rings for double-sided damping, ensuring smooth operation and reducing noise.
- 2This pneumatic cylinder features an arbitrary installation position, allowing for flexible integration into various automation systems.
- 3The high-alloy steel piston rod provides excellent durability and resistance to wear, ensuring long service life.
- 4With a stroke length of 10 mm and a piston diameter of 12 mm, this compact cylinder is perfect for applications requiring precise movement.
- 5The ADNGF-12-10-P-A cylinder is compliant with ISO 21287 standards and operates with compressed air to ISO 8573-1:2010, ensuring high-quality performance in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 12 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
| Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 68N |
| Moving mass | 25g | Product weight | 90g |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 554206 |
Specifications may be subject to change without notice
