Product Model

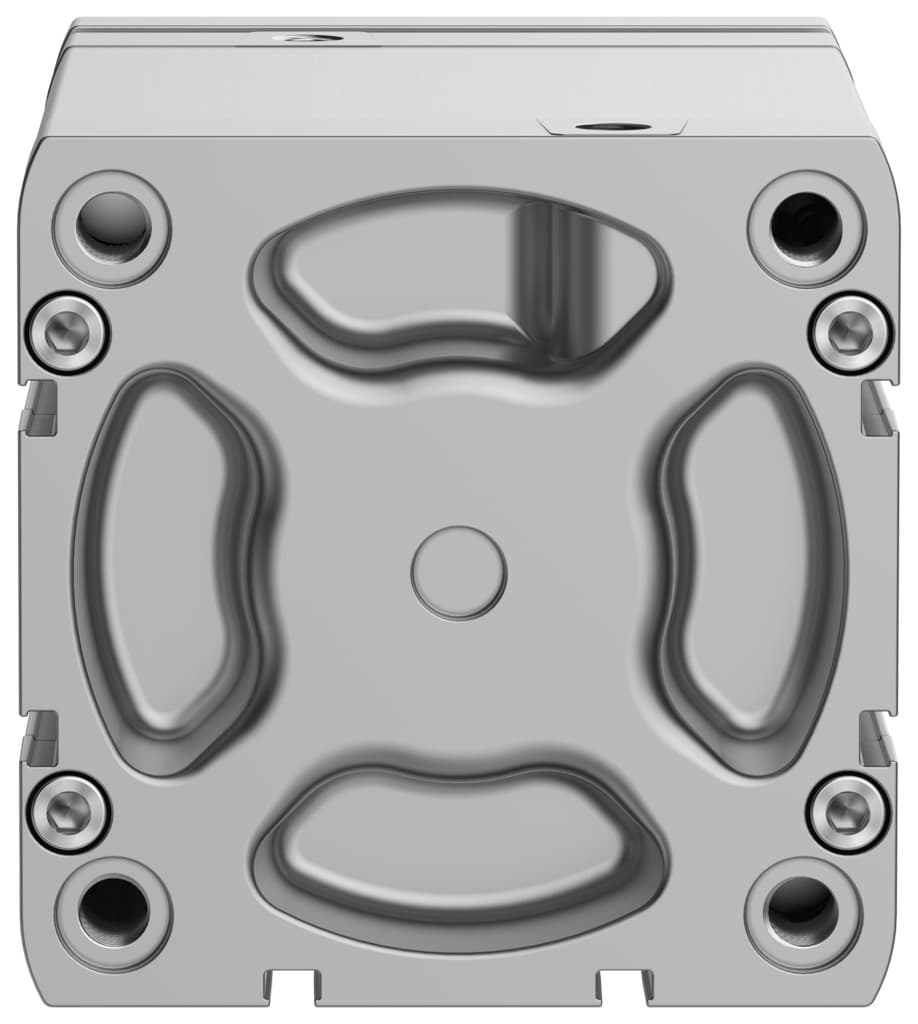

adngf-100-80-pps-a

Manufacturer

Festo

Key Features

1High Load Capacity: The ADNGF-100-80-PPS-A cylinder boasts a higher load capacity thanks to its guide rod and yoke plate design.
2Self-Adjusting Cushioning: Equipped with self-adjusting pneumatic end-position cushioning (PPS) for optimal performance and durability.
3Precision Engineering: Based on the ISO 21287 standard, ensuring precision and reliability in every application.
4Versatile Mounting: Can be mounted in any position, offering flexibility in installation and use.
5Compliant with ISO Standards: Meets the stringent requirements of ISO 21287, ensuring compatibility and reliability in various industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	80mm	Piston diameter	100 mm
Based on norm	ISO 21287	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Protection against torsion/guide	Guide rod with yoke
Operating pressure	1.4bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Impact energy in the end positions	2.5J
Cushioning length	10mm	Theoretical force at 6 bar, retracting	4524N
Theoretical force at 6 bar, advancing	4712N	Moving mass	1429g
Product weight	3157g	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Flange screws material	Steel
Cover material	Die-cast aluminum, coated	Seals material	TPE-U(PUR)
End plate material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy steel
Material of cylinder barrel	Wrought aluminum alloy, smooth-anodized	Manufacturer ID	577232

Specifications may be subject to change without notice
