Product Model
adngf-100-25-pps-a
Key Features

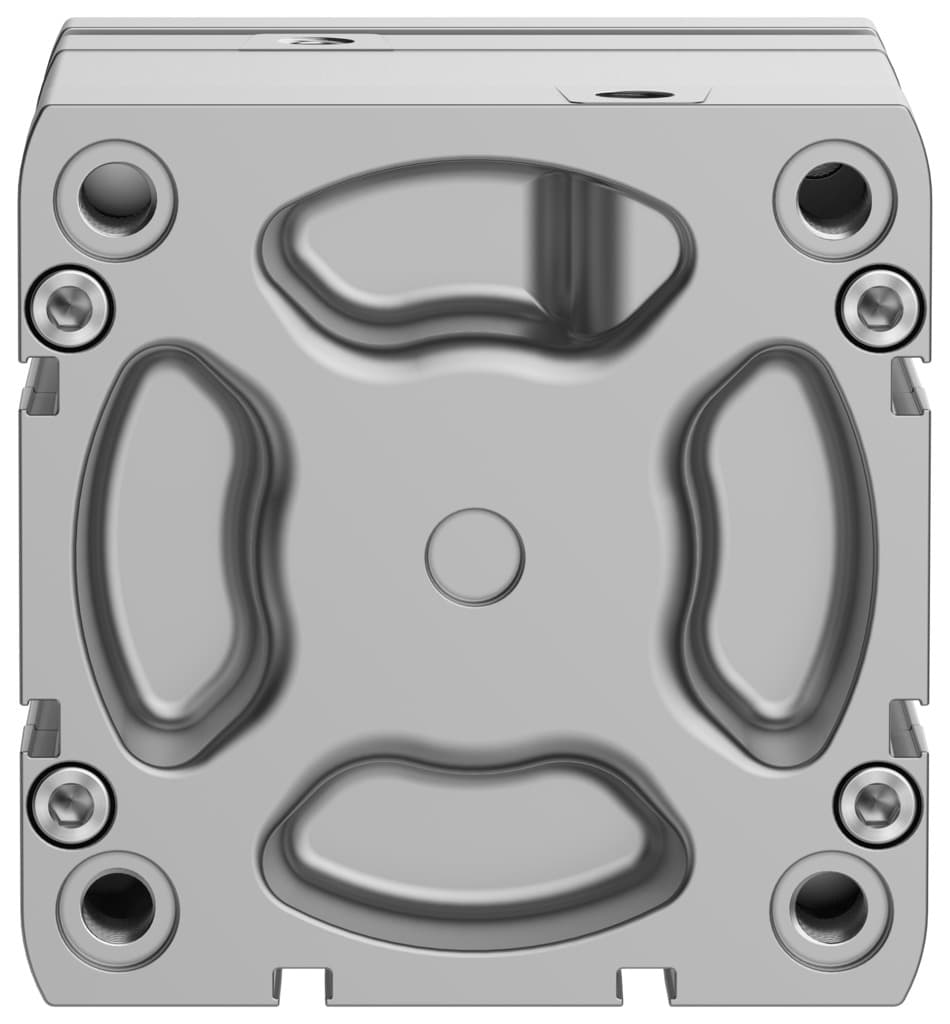

- 1The Festo ADNGF-100-25-PPS-A is a compact cylinder designed for efficient use in various applications.
- 2Equipped with self-adjusting pneumatic end-position cushioning for smooth operation.
- 3Piston rod secured against rotation by guide rods and yoke plate for enhanced stability.
- 4Achieves higher load capacity thanks to the guide rod and yoke plate design.
- 5Suitable for position sensing applications with built-in magnet for precise detection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 100 mm |
| Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.4bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
| Cushioning length | 10mm | Theoretical force at 6 bar, retracting | 4524N |
| Theoretical force at 6 bar, advancing | 4712N | Moving mass | 1195g |
| Product weight | 2518g | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577227 |
Specifications may be subject to change without notice
