Product Model
adn-63-35-a-p-a
Key Features

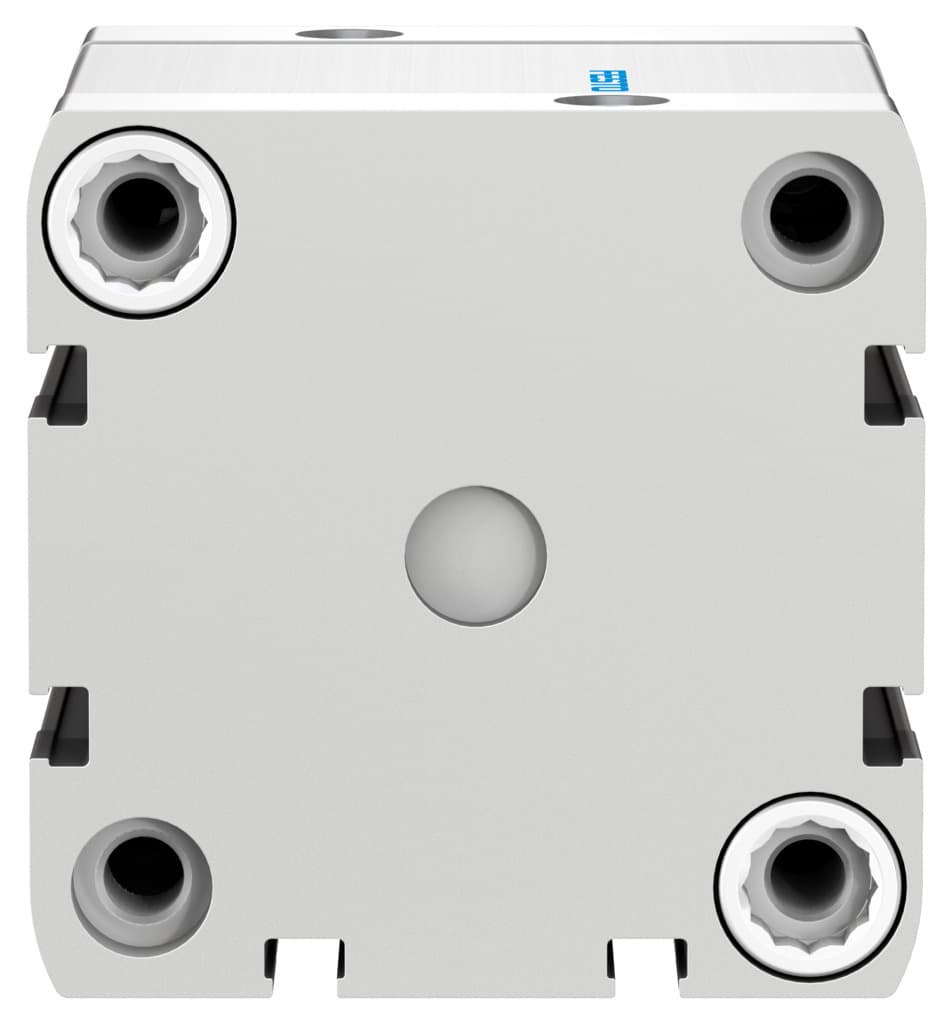

- 1The Festo ADN-63-35-A-P-A compact air cylinder features a stroke of 35 mm and a piston diameter of 63 mm, making it versatile for a wide range of applications.
- 2Equipped with elastic cushioning rings at both ends, this cylinder ensures smooth operation and reduces wear and tear, enhancing its durability.
- 3The ADN-63-35-A-P-A operates at pressures between 0.04 MPa and 1 MPa, supporting double-acting mode and compatibility with compressed air as per ISO 8573-1:2010.
- 4Designed for mounting in any position, this cylinder is highly flexible and can be integrated into various systems, including those requiring proximity sensor detection.
- 5Made from high-quality materials such as wrought aluminum alloy and high-alloy steel, the Festo ADN-63-35-A-P-A ensures corrosion resistance and long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 35mm | Piston diameter | 63 mm |
| Piston rod thread | M12x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | External thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.3J |
| Theoretical force at 6 bar, retracting | 1750N | Theoretical force at 6 bar, advancing | 1870N |
| Moving mass | 279g | Product weight | 963g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 8178283 |
Specifications may be subject to change without notice
