Product Model

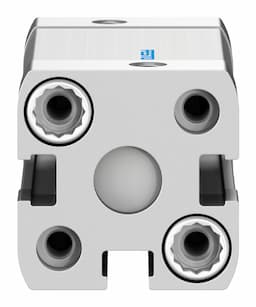

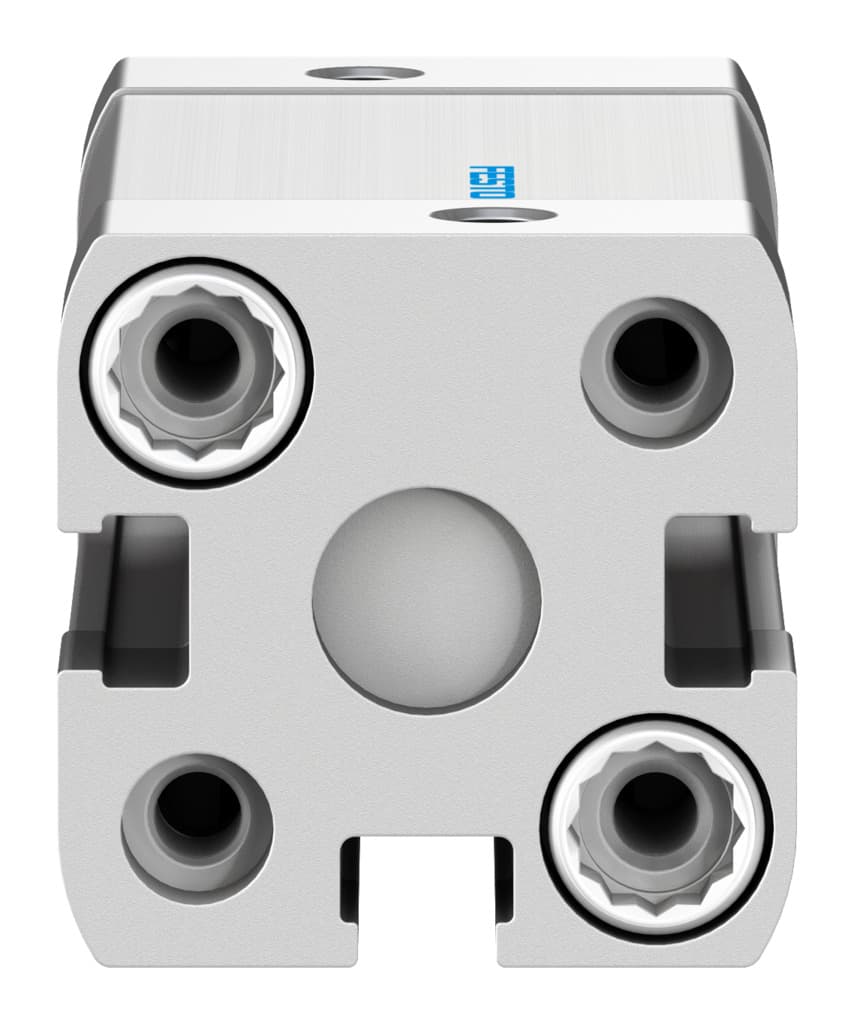

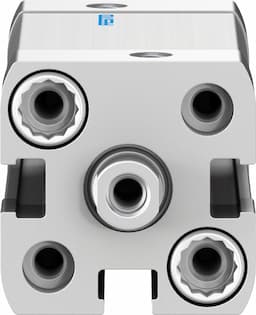

adn-5/8"-1"-i-p-a
Key Features
- 1The ADN-5/8"-1"-I-P-A features a double-acting design for smooth and efficient operation.
- 2Equipped with flexible cushioning rings/plates at both ends for reduced wear and tear.
- 3Includes position sensing capabilities via proximity switch for precise control.
- 4Ideal for space-constrained applications due to its compact profile barrel design.
- 5Meets ISO 21287 standards for pneumatic cylinders, ensuring high-quality performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25.4mm | Piston diameter | 5/8" |
| Piston rod thread | 8-36 UNF-2B | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod Profile barrel | Position sensing | For proximity sensor |
| Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.1505J |
| Theoretical force at 6 bar, retracting | 90.001N | Theoretical force at 6 bar, advancing | 121.001N |
| Moving mass at 0?mm stroke | 15.054g | Additional moving mass per 10?mm stroke | 14.062g |
| Basic weight with 0?mm stroke | 79.295g | Additional weight per 10?mm stroke | 8.023g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | 10-32 UNF-2B |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Material of dynamic seals | TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 557042 |
Specifications may be subject to change without notice
