Product Model
adn-5/8"-1 1/2"-i-p-a
Key Features

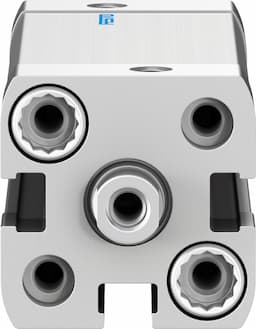

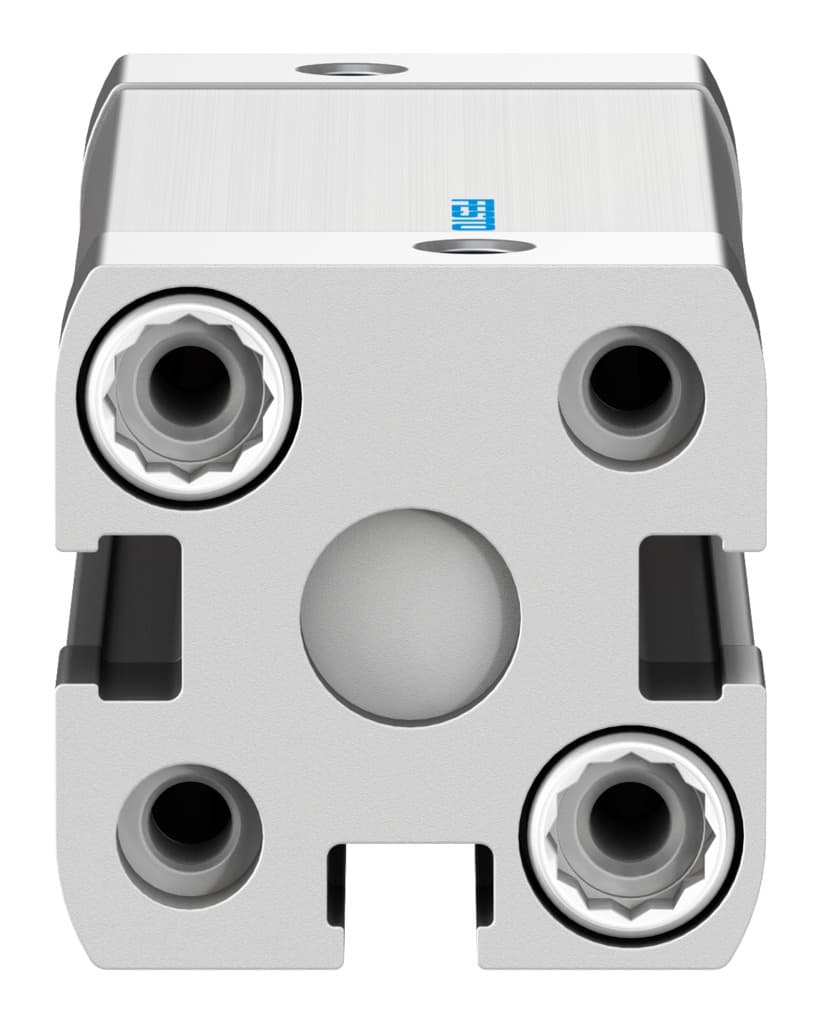

- 1The ADN-5/8"-1 1/2"-I-P-A features a compact cylinder design, perfect for space-constrained industrial applications.
- 2This Festo cylinder operates double-acting, allowing for both extension and retraction of the piston rod.
- 3Equipped with flexible cushioning rings/plates at both ends, it ensures smooth operation and reduces wear.
- 4Conforms to ISO 21287 standards, ensuring high-quality performance in various industrial settings.
- 5Compatible with proximity sensors for precise position detection, enhancing automation accuracy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 38.1mm | Piston diameter | 5/8" |
| Piston rod thread | 8-36 UNF-2B | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod Profile barrel | Position sensing | For proximity sensor |
| Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.1505J |
| Theoretical force at 6 bar, retracting | 90.001N | Theoretical force at 6 bar, advancing | 121.001N |
| Moving mass at 0?mm stroke | 15.054g | Additional moving mass per 10?mm stroke | 14.062g |
| Basic weight with 0?mm stroke | 79.295g | Additional weight per 10?mm stroke | 8.023g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | 10-32 UNF-2B |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Material of dynamic seals | TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 557044 |
Specifications may be subject to change without notice
