Product Model
adn-50-35-i-p-a
Key Features

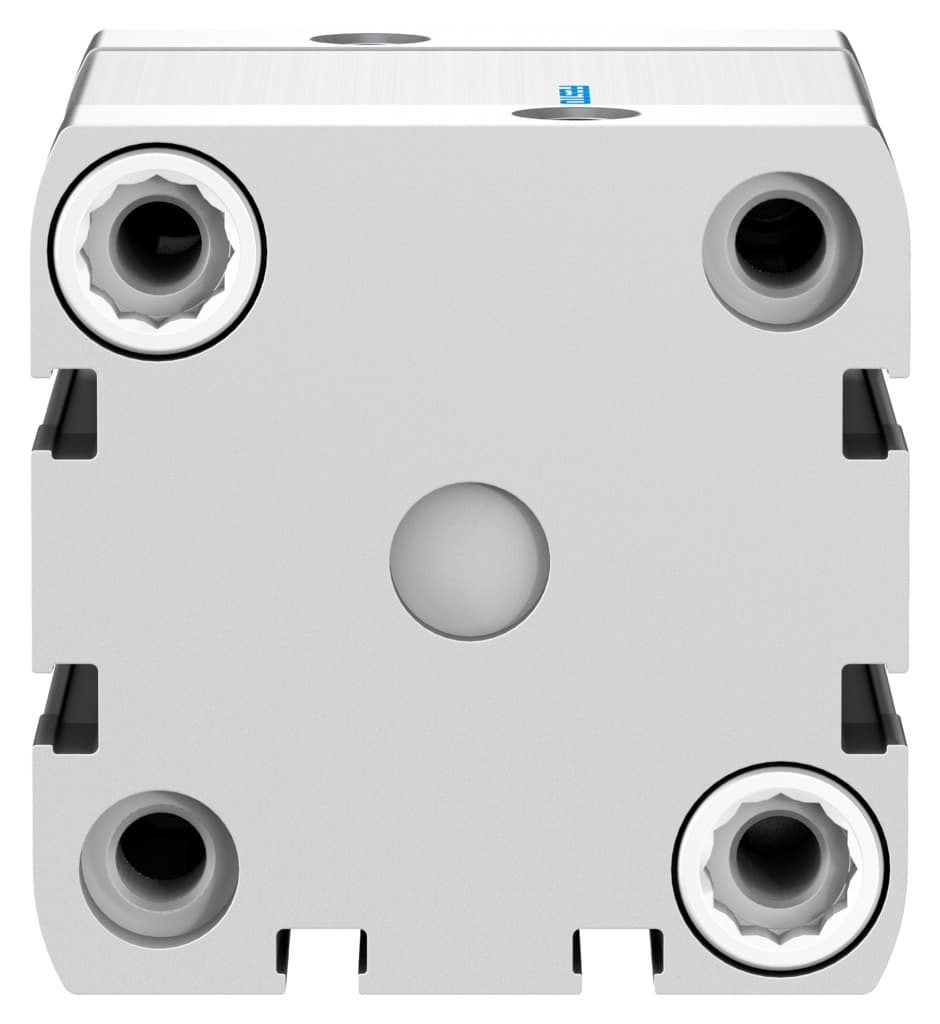

- 1The ADN-S-50-35-I-P-A compact cylinder is engineered for precise double-acting operations, ensuring reliable performance in various industrial applications.
- 2This cylinder is specifically recommended for production facilities manufacturing lithium-ion batteries, adhering to strict cleanliness standards.
- 3Equipped with elastic cushioning rings at both ends, it provides smooth operation and reduces noise, enhancing overall system efficiency.
- 4Designed to operate with compressed air to ISO 8573-1:2010 standards, ensuring consistent performance in a wide range of environments.
- 5Featuring a corrosion resistance class of CRC 1 (low corrosion stress), this cylinder is suitable for use in various industrial settings where corrosion might be a concern.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 35mm | Piston diameter | 50 mm |
| Piston rod thread | M10 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | Internal thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1J |
| Theoretical force at 6 bar, retracting | 1057N | Theoretical force at 6 bar, advancing | 1178N |
| Moving mass | 178g | Product weight | 669g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 8178619 |
Specifications may be subject to change without notice
