Product Model
adn-32-70-i-pps-a
Key Features

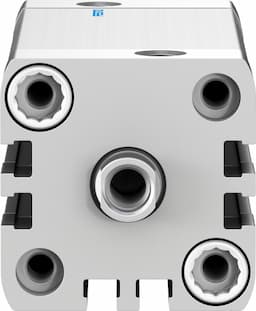

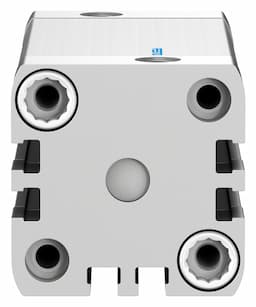

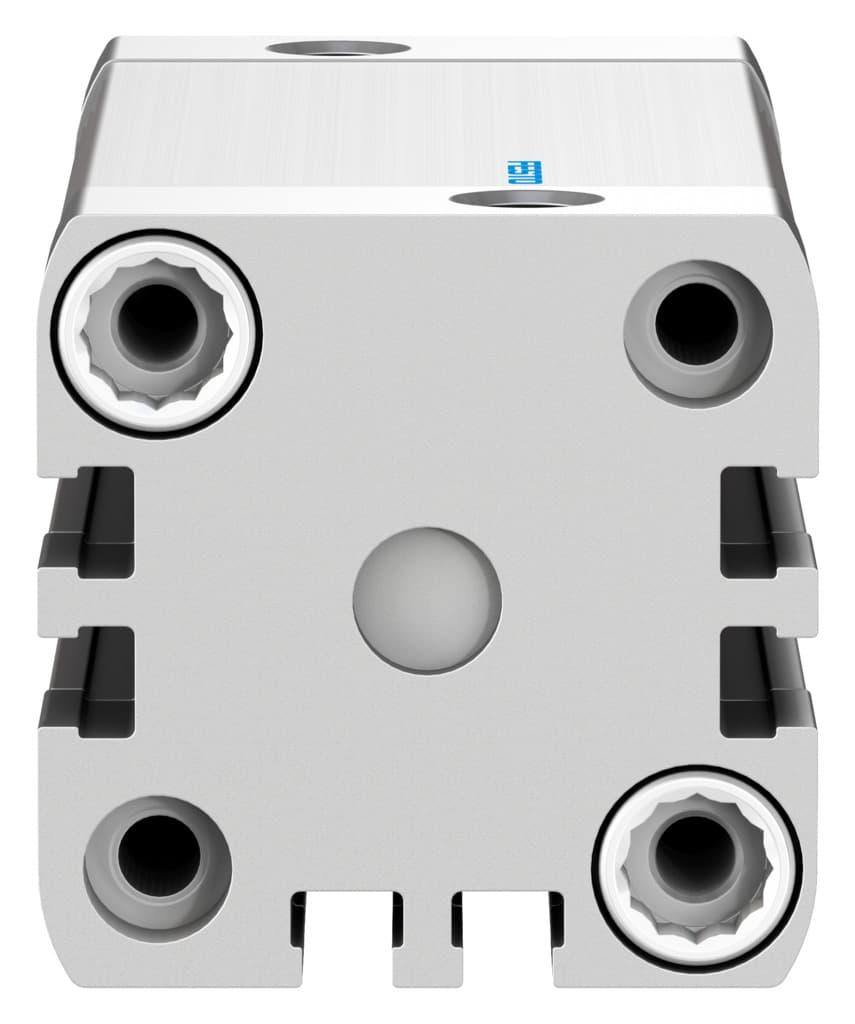

- 1The Festo ADN-32-70-I-PPS-A compact cylinder offers a stroke length of 70 mm and a piston diameter of 32 mm, making it ideal for a variety of pneumatic applications.
- 2This cylinder features self-adjusting pneumatic end-position cushioning, ensuring smooth operation and minimizing wear and tear.
- 3The ADN-32-70-I-PPS-A is designed for double-acting operation with an operating pressure range of 0.15 MPa to 1 MPa, suitable for a wide range of industrial applications.
- 4The cylinder is constructed from high-quality materials, including wrought aluminum alloy for the cover and high-alloy steel for the piston rod, ensuring durability and corrosion resistance.
- 5The Festo ADN-32-70-I-PPS-A is compatible with compressed air in accordance with ISO 8573-1:2010 and can be operated with oil lubrication for enhanced performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 70mm | Piston diameter | 32 mm |
| Piston rod thread | M8 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | Internal thread | Position sensing | For proximity sensor |
| Symbol | 00992970 | Variants | Piston rod at one end |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 1J | Cushioning length | 4mm |
| Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
| Moving mass | 121g | Product weight | 453g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 8179024 |
Specifications may be subject to change without notice
