Product Model
adn-25- -kp-
Key Features

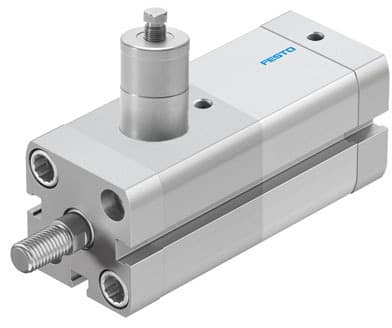

- 1The Festo ADN-25 compact cylinder offers a robust performance and long service life, making it a reliable choice for various industrial applications.
- 2This cylinder features sensor slots on three sides for flush mounting of proximity switches/sensors, enhancing position sensing accuracy.
- 3The ADN-25 cylinder provides flexible mounting options, including female thread or through-hole mounting, along with a comprehensive range of accessories for easy installation.
- 4With integrated cushioning for absorbing residual energy, the ADN-25 ensures smooth operation and reduces wear and tear on the system.
- 5The Festo ADN-25 is designed to be RoHS-compliant, ensuring environmental sustainability and meeting stringent industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 300mm | Piston diameter | 25 mm |
| Piston rod thread | M8 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Clamping type with active direction | Both sides | Piston rod end | Internal thread |
| Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
| Symbol | 00991260 | Variants | Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Impact energy in the end positions | 0.3J |
| Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
| Moving mass at 0?mm stroke | 63g | Additional moving mass per 10?mm stroke | 6g |
| Basic weight with 0?mm stroke | 344g | Additional weight per 10?mm stroke | 26g |
| Type of mounting | With internal thread With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy Smooth anodized |
| Manufacturer ID | 548207 |
Specifications may be subject to change without notice
