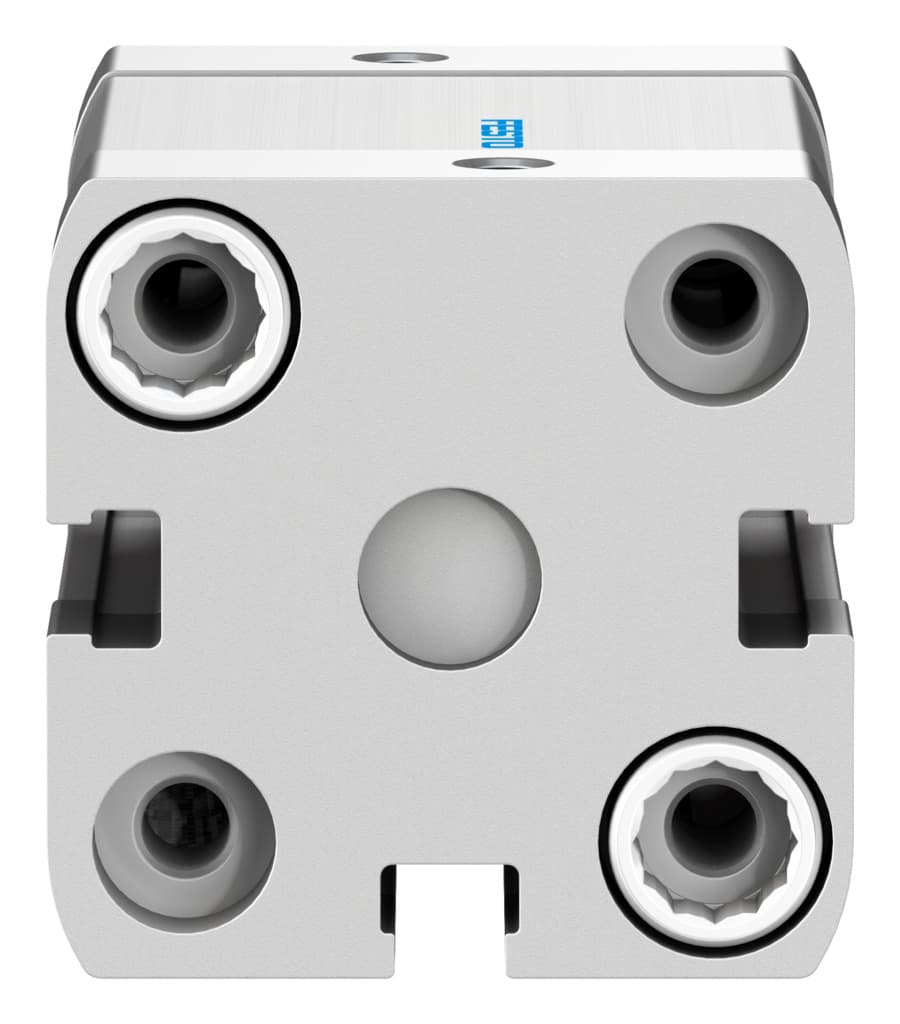

Product Model
adn-25-20-a-pps-a
Key Features
- 125x20mm stroke, perfect for space-saving applications.
- 2RoHS-compliant, with a piston rod made of high-alloy steel and a cylinder tube of smooth-anodized aluminum.
- 3PPS (Pneumatic End-Position Cushioning) ensures smooth operation and extended lifespan.
- 4Double-acting operation with compressed air to ISO 8573-1:2010 [7:4:4] for reliable performance.
- 5Moderate corrosion stress (CRC 2) for durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 25 mm |
| Piston rod thread | M8 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | External thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.3J | Cushioning length | 3.5mm |
| Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
| Moving mass | 52g | Product weight | 224g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 577184 |
