Product Model

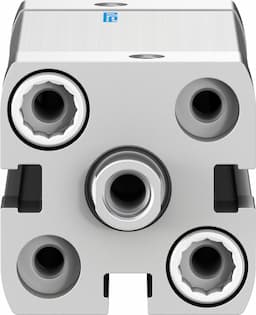

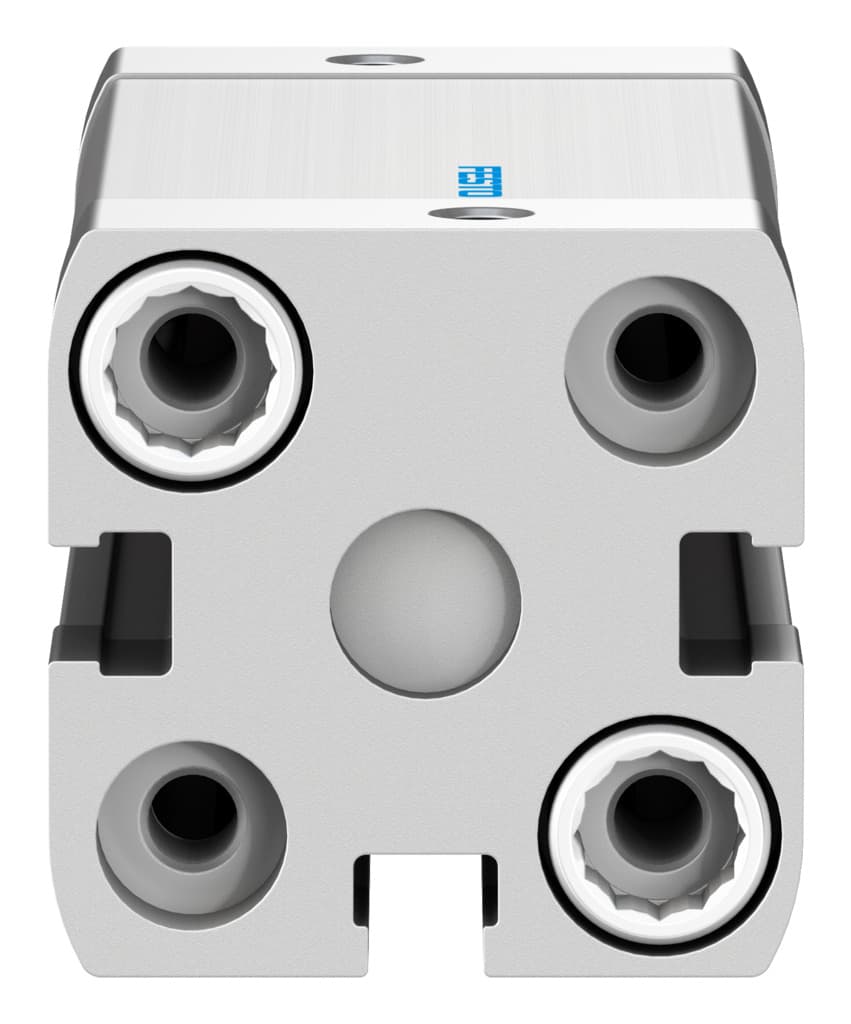

adn-20-40-i-pps-a
Key Features
- 1Precision Motion Control: Delivers precise motion control with self-adjusting pneumatic end-position cushioning.
- 2Robust Design: Constructed with high-alloy steel piston rod and aluminum alloy cylinder barrel for durability.
- 3Versatile Mounting: Can be mounted in any position, enhancing flexibility in industrial automation.
- 4Compliant Standards: Conforms to ISO 21287, ensuring high-quality performance and safety.
- 5Efficient Operation: Operates with compressed air, allowing for lubricated operation for extended use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 40mm | Piston diameter | 20 mm |
| Piston rod thread | M6 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | Internal thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.2J | Cushioning length | 3mm |
| Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 188N |
| Moving mass | 49g | Product weight | 216g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 577163 |
Specifications may be subject to change without notice
