Product Model

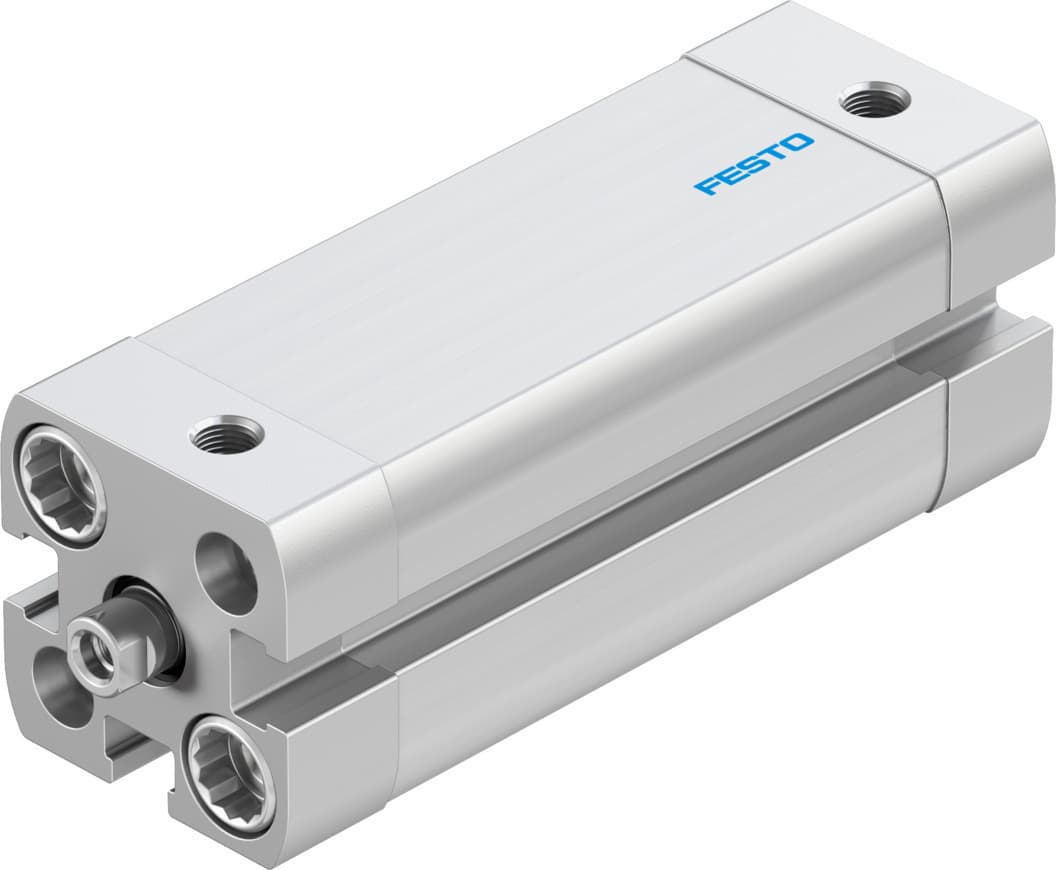

adn-12-60-i-p-a
Key Features
- 1Compact design for space-saving applications
- 2Double-acting operation for efficient movement
- 3High corrosion resistance class (CRC) 2 for durability
- 4Elastic cushioning rings at both ends for smooth operation
- 5Compatible with compressed air as per ISO 8573-1:2010 [7:4:4]
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 60mm | Piston diameter | 12 mm |
| Piston rod thread | M3 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.07J | Theoretical force at 6 bar, retracting | 51N |
| Theoretical force at 6 bar, advancing | 68N | Moving mass | 23g |
| Product weight | 136g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 604883 |
Specifications may be subject to change without notice
