Product Model

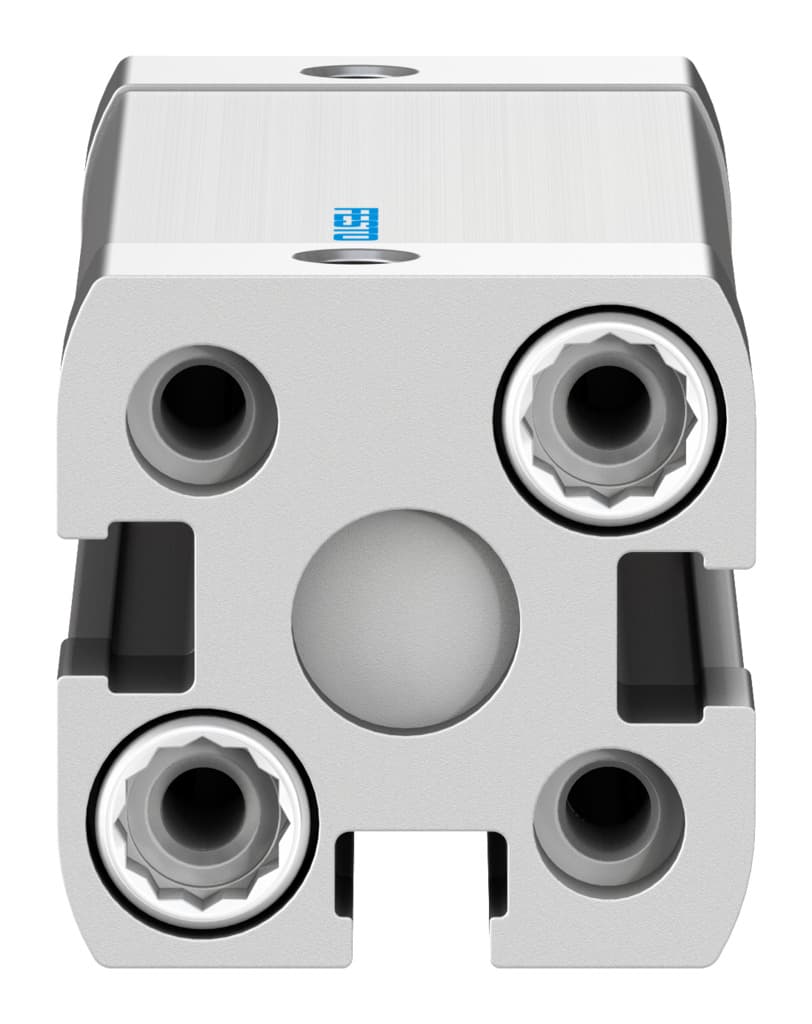

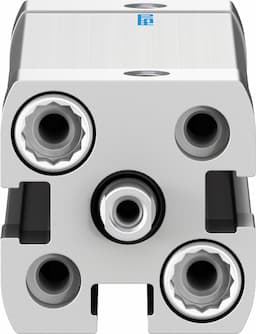

adn-12-50-i-p-a
Key Features
- 1The ADN-12-50-I-P-A features a compact design, making it ideal for space-constrained applications. Its small size does not compromise on performance, ensuring efficient use in automation tasks.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder provides smooth operation and reduces noise, enhancing overall system reliability.
- 3The ADN-12-50-I-P-A offers flexible mounting options, including through-hole and female thread configurations, allowing for easy integration into various production systems.
- 4With a corrosion resistance class of CRC 2, this cylinder is designed to withstand moderate corrosion stress, ensuring durability in harsh environments.
- 5The ADN-12-50-I-P-A is based on the ISO 21287 standard, ensuring compliance with industry benchmarks for pneumatic cylinders, providing a high level of reliability and consistency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 50mm | Piston diameter | 12 mm |
| Piston rod thread | M3 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.07J | Theoretical force at 6 bar, retracting | 51N |
| Theoretical force at 6 bar, advancing | 68N | Moving mass | 20g |
| Product weight | 124g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 8178550 |
Specifications may be subject to change without notice
