Product Model

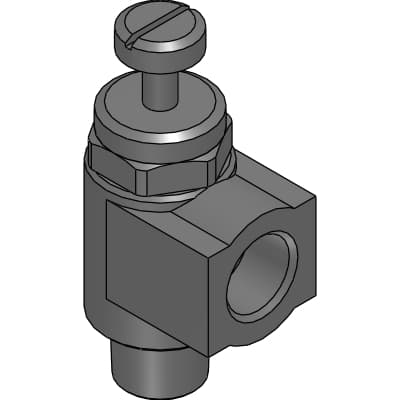

SC3R-6
Key Features
- 1Direct port connection for easy setup.
- 2Flexible piping direction for versatile installation.
- 3Needle dislocation prevention for reliable operation.
- 4Easy low speed adjustment for precise control.
- 5Suitable for cleanrooms and various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | SC3R | Port size | 6: R1/8 |
| Option | Blank: Meter-out type | A | 42.5mm |
| B | 18.8mm | C | 7.7mm |
| D | 15.0mm | E | 6.7mm |
| F | 9mm | G | R1/8 |
| H | R1/8 |
Specifications may be subject to change without notice
