Product Model

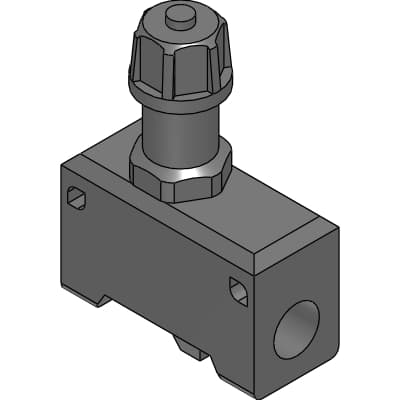

SC1-10

Key Features
- 1The CKD SC1-10 offers precise speed control with its inline medium bore size, suitable for outdoor applications.
- 2Equipped with an adjusting dial that includes dislocation prevention for reliable operation.
- 3Suitable for various industries and applications, including pneumatic systems and air flow control.
- 4Constructed to withstand outdoor conditions, ensuring long-lasting performance.
- 5Mountable from either the bottom or the side, providing flexibility in installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SC1 | Port size | 10: Rc3/8 |
| Option | Blank: No option | A | 63mm |
| B | 21mm | C | 55mm |
| D | 40mm | E | 31mm |
| F | 15mm | G | 83mm |
| H | 30mm | I | 18mm |
| J | 37mm | K | 23mm |
Specifications may be subject to change without notice
