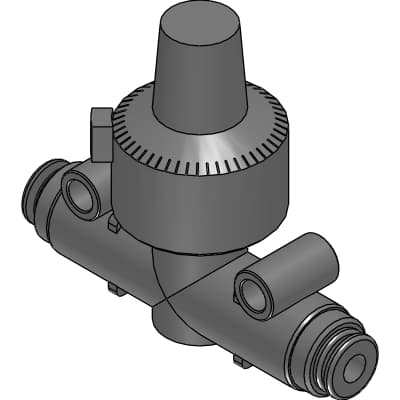

Product Model
DVL-S-10-H88-400
Key Features
- 1High flow rate of 440L/min for efficient fluid management.
- 2Adjustable dial for precise control over needle valve operation.
- 3Integrated check valve ensures reliable fluid flow and prevents backflow.
- 4Compact design with port size of 8mm, suitable for various industrial settings.
- 5Reliable performance in managing high-pressure fluid systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | DVL | Control method (oil removing) | S: Check valve type |
| Body size | 10: 3/8 thread equivalent | Applicable tube O.D. | H88: φ8 |
| Flow rate type | 400: 400 l/min (ANR) | A | 58.0mm |
| B | 29.0mm | C | 15.0mm |
| D | 11.5mm | E | 15.1mm |
| F | 71.0mm | H | 20.0mm |
| J | 23.0mm | K | 47.0mm |
| tube insert length | 19.0mm |
Specifications may be subject to change without notice
