Product Model

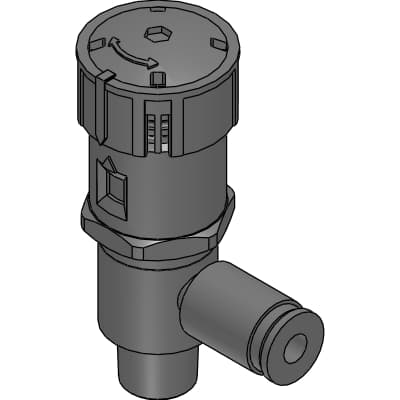

DSC-10-6
Key Features
- 1Visualizes cylinder speed setting with an indicator and adjustment dial.
- 2Designed for meter-out applications with a control direction of meter-out.
- 3Made from polybutylene terephthalate (PBT) for high durability and resistance.
- 4Features a push-lock mechanism for quick and secure installation.
- 5Compatible with various piping sizes and applicable tube outer diameters.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | DSC | Product size | Blank: Standard type |
| Port size | 10: R3/8 | Applicable tube outer diameter | 6: φ6mm |
| Control method | Blank: Meter out | Flow type | Blank: Standard flow |
| A | 58mm | B | 23.1mm |
| C | 12.7mm | D | 28.5mm |
| E | 22.5mm | F | 12.5mm |
| Flat-to-flat distance of hexagon | 19mm |
Specifications may be subject to change without notice
