Fault-tolerant digital module DM-F LOCAL for fail-safe disconnection.

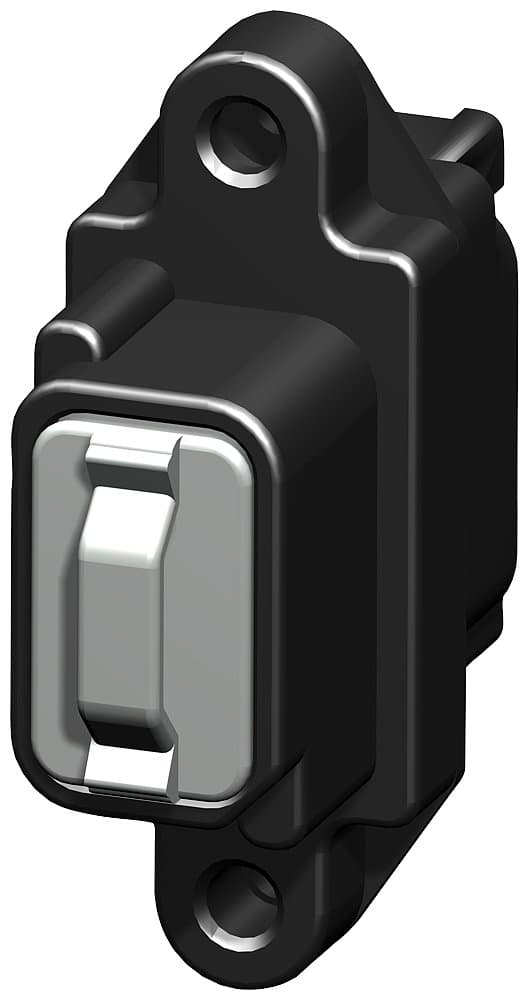

Door adapters, installed in the cabinet door or on the front panel, are used to bring out the system interfaces.

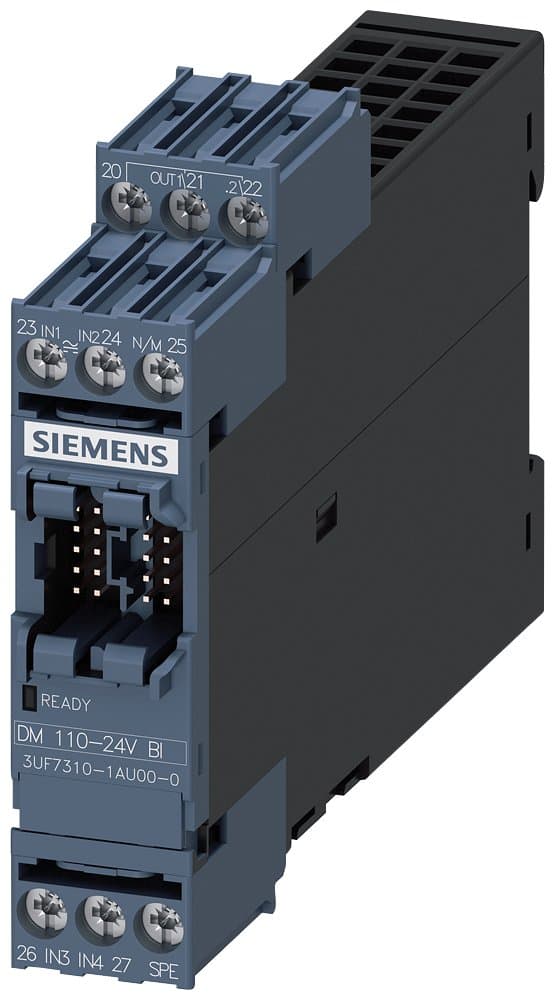

Digital module, 4 input ports and 2 relay output ports, input voltage 110-240V AC/DC

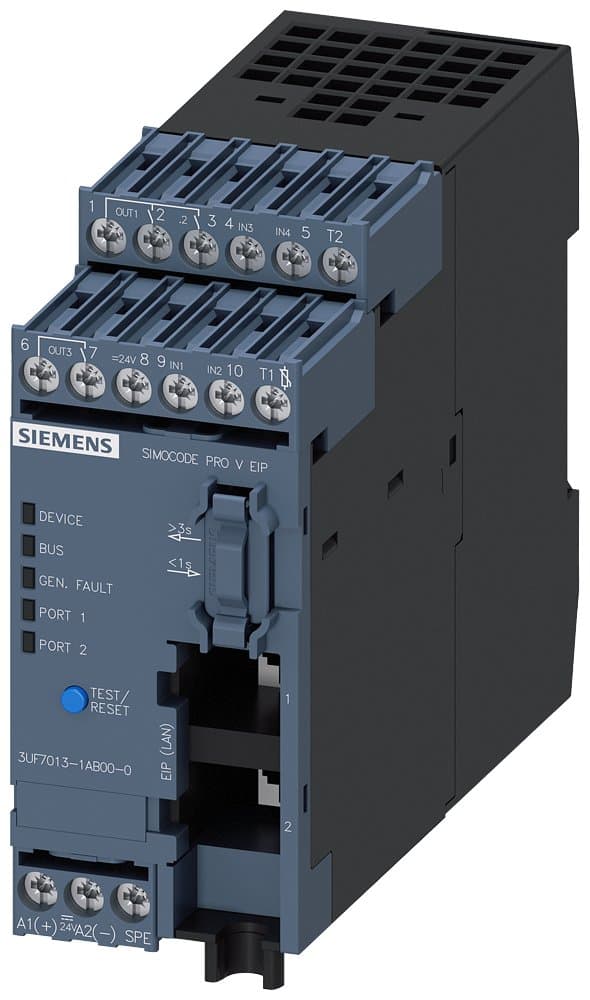

Basic equipment SIMOCODE pro V Ethernet/IP media redundancy DLR network server 100MBit/s

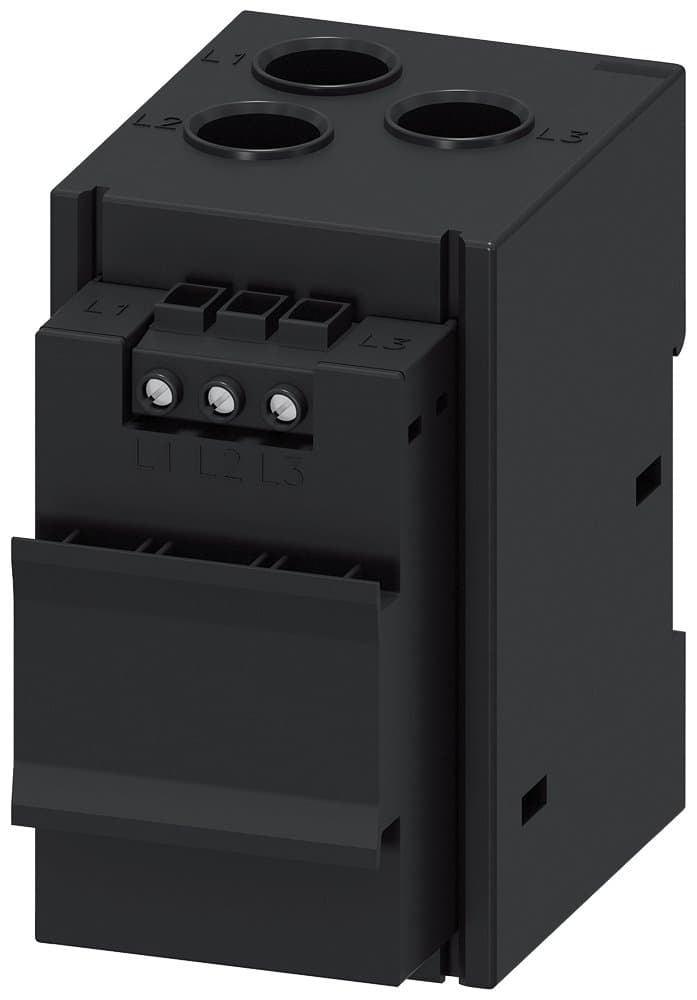

Current/Voltage Acquisition Module V2, 10-115A, Structural Width 55mm, Through-Type Current Transformer

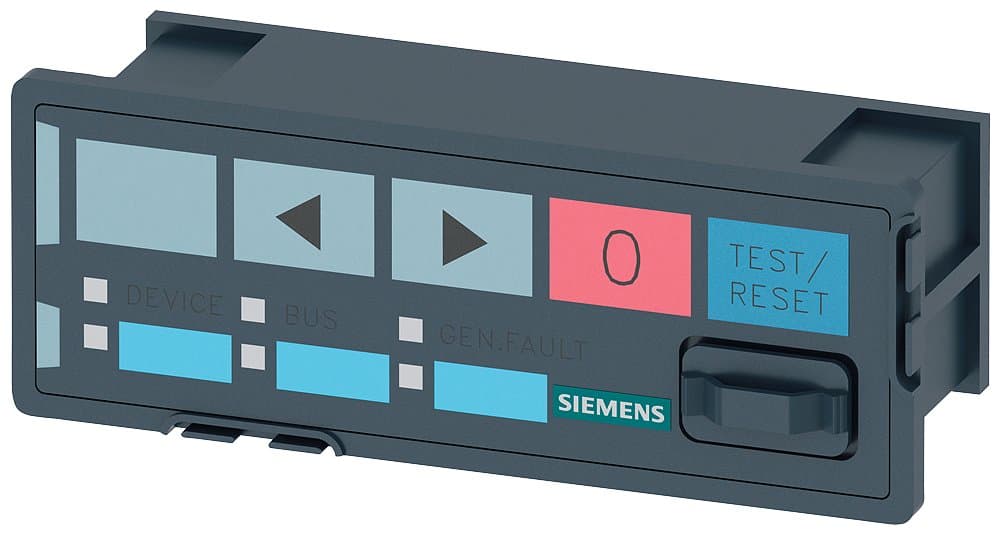

Operation module, titanium gray, installed in the switch cabinet door or on the front panel.

The initialization module is used for automatic parameter setting for SIMOCODE pro, suitable for fixed installations.

Basic equipment SIMOCODE pro V Ethernet/IP media redundancy DLR network server 100MBit/s

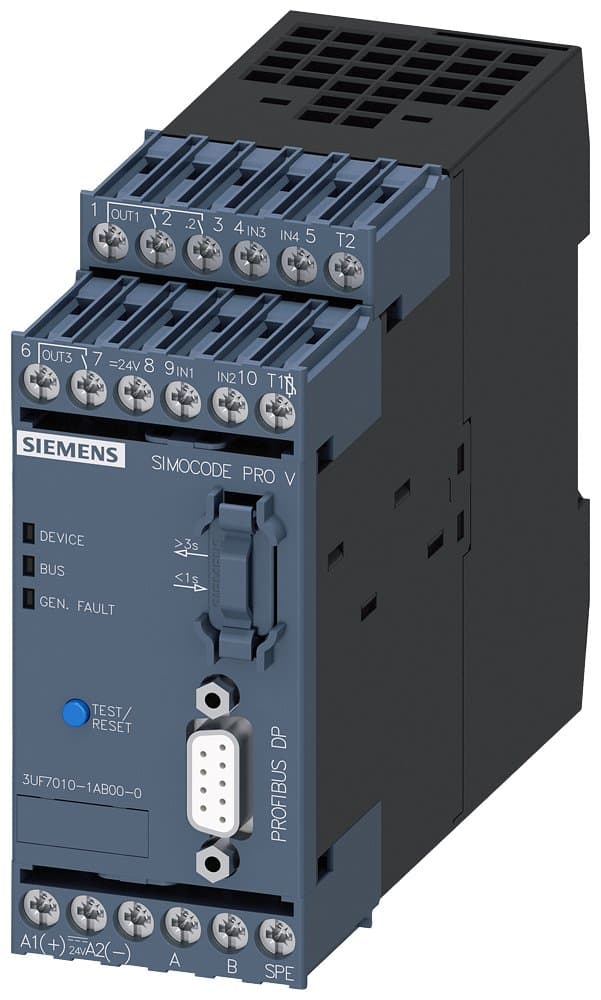

Basic Equipment SIMOCODE pro V, PROFIBUS-DP interface, 12 MBit/s, RS485, 4E/3A

Simulation module, 2 input terminals (passive) and 1 output terminal for analog signal 0/4-20mA

Basic unit SIMOCODE pro V MR, MODBUS RTU interface 57.6 Kbps, RS 485, 4I/3O freely parameterizable, Us: 24 V DC, input for thermistor connection Monostable relay outputs, expandable by extension modules

Upgrade, for the PCS 7 block library SIMOCODE pro V8 to version SIMOCODE pro V9 AS blocks and panels for integrating SIMOCODE pro C/S

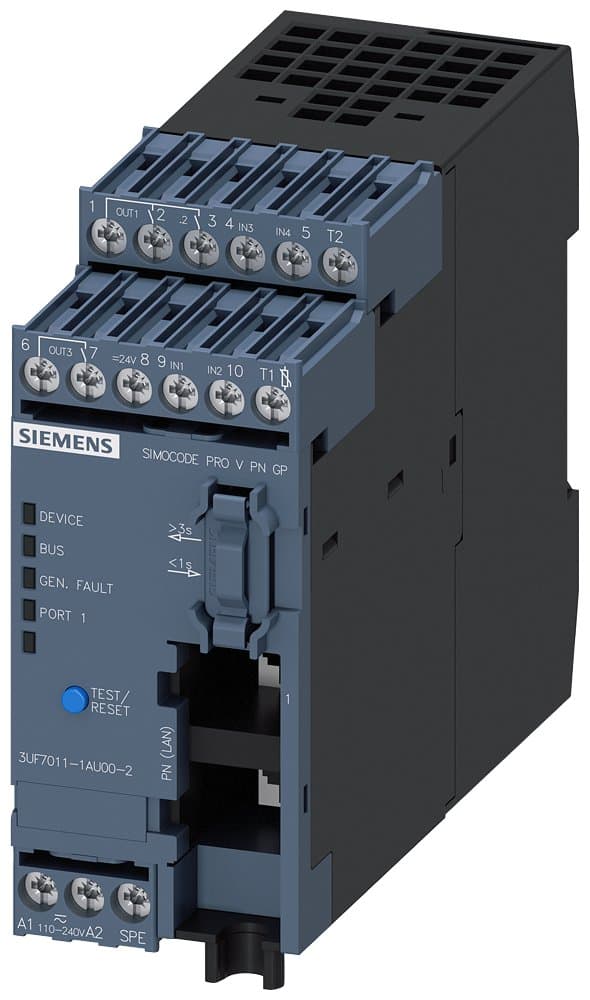

Basic module SIMOCODE pro V PN GP, Ethernet/PROFINET IO, 1xRJ45, 110-240VAC/DC

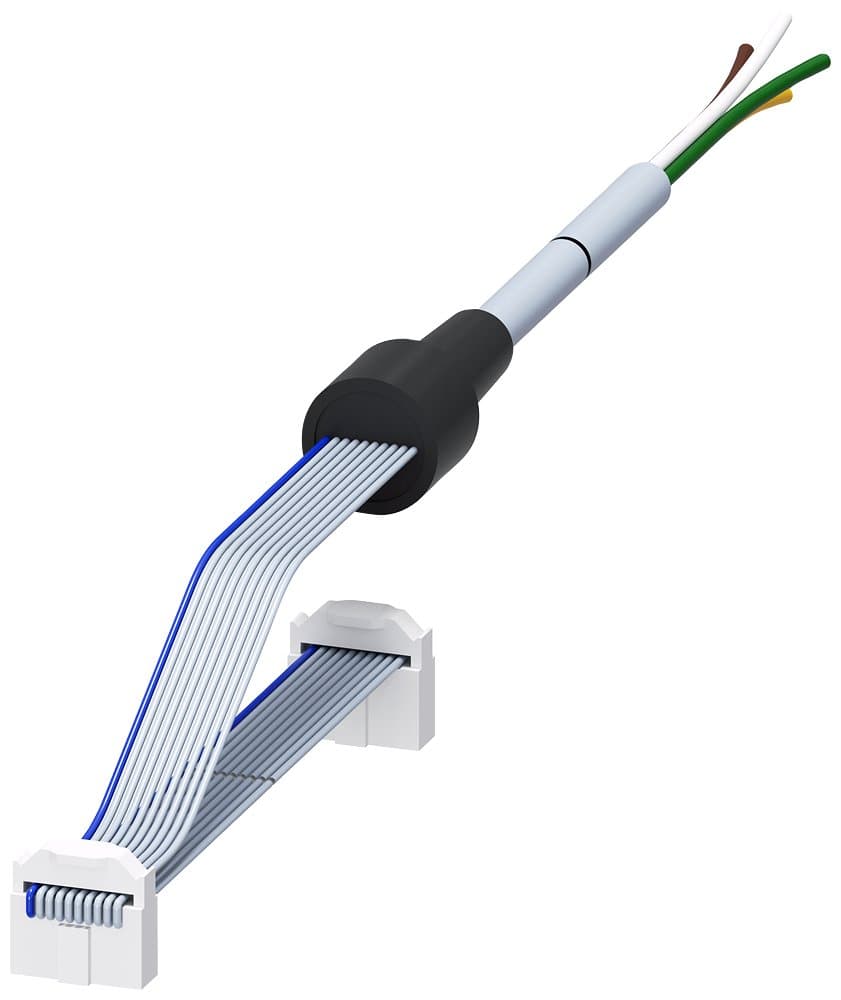

Y-type connection cable, used to connect to the initialization module.

Basic equipment SIMOCODE pro S, PROFIBUS-DP interface

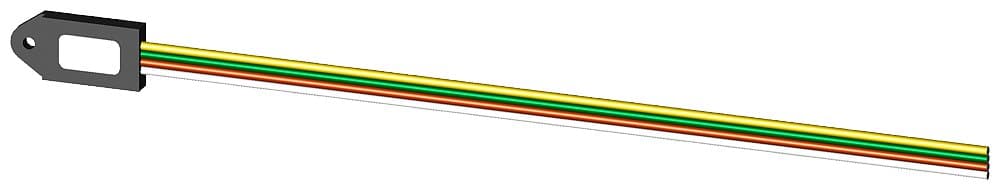

Connect cable, length 0.1m, flat, for connecting base equipment.

PCS 7 Block Library SIMOCODE - Each V9.0 AS Block for integrating SIMOCODE pro C/S/V into the process control system PCS 7 with Advanced Process Library requires SIMATIC PCS 7 V9.X Advanced Process Library runtime software to run AS modules in an automation system. Single license, no software and documentation included.

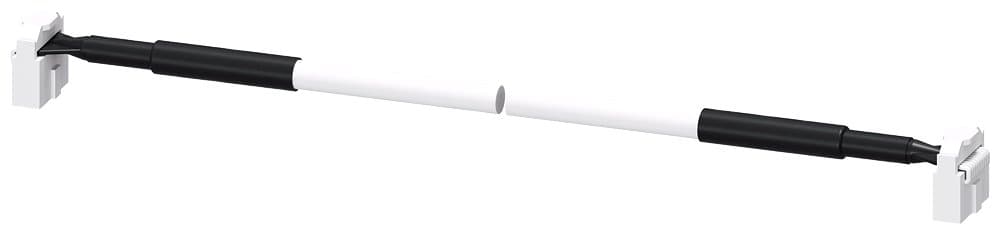

Connection cable, 1.0m in length, round, for connecting base equipment.

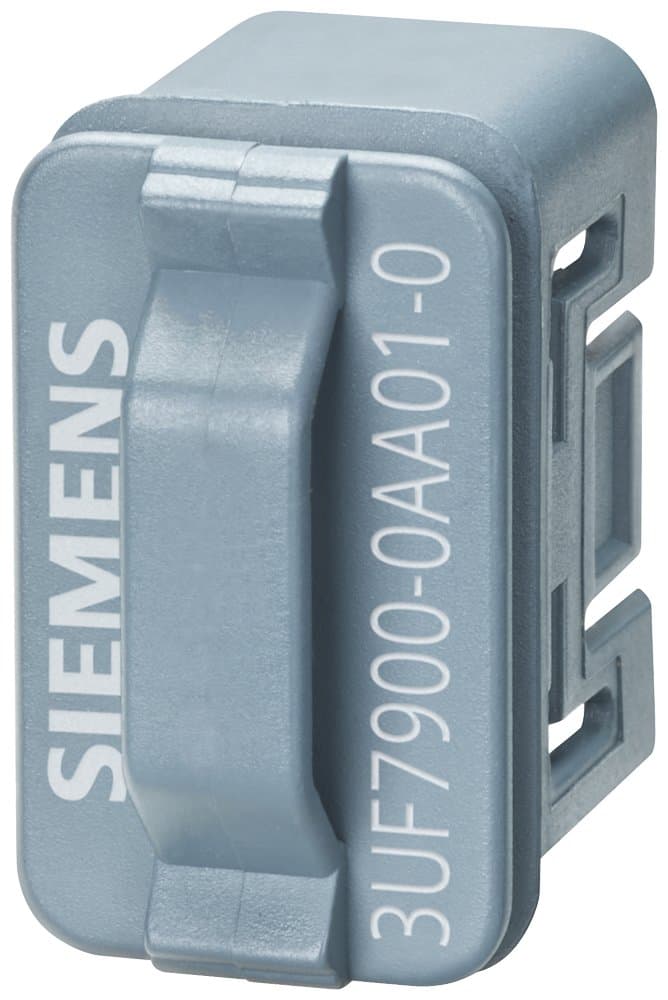

Energy storage module, parameter setting for SIMOCODE pro C without PC/PG, titanium gray

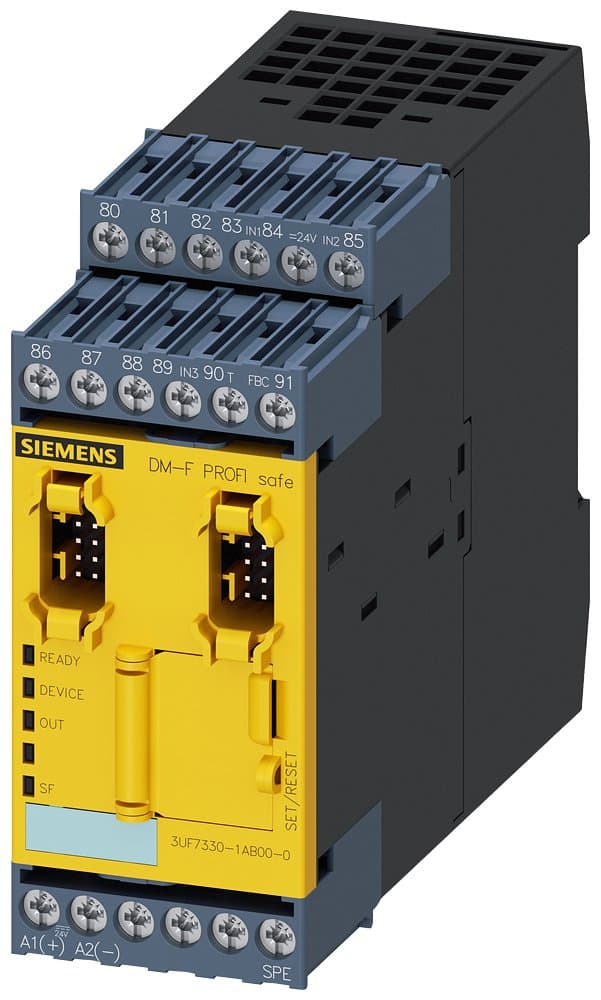

Fault-tolerant digital module DM-F PROFIsafe for fail-safe disconnection.
