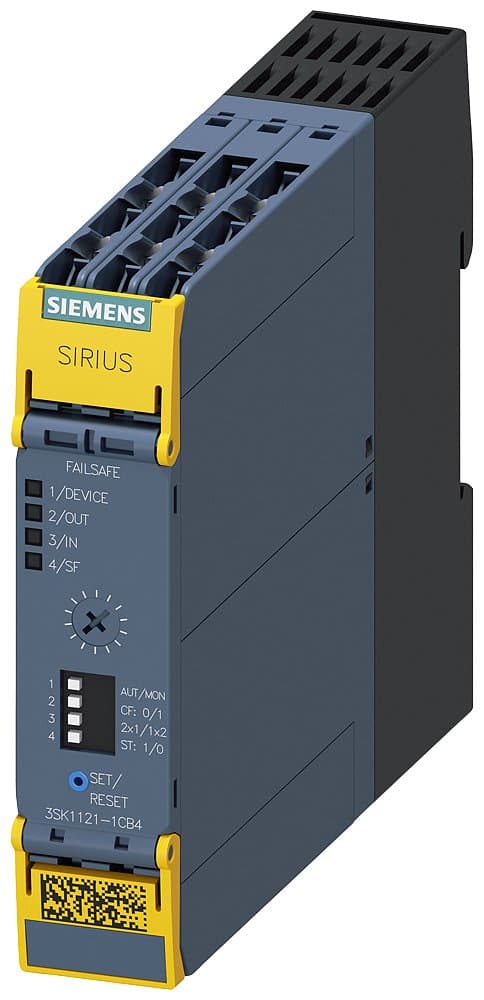

SIRIUS Safety Switchgear, Basic Equipment, Advanced Series, with time delay 5-30

magnetically operated switch contact block round M30 contact elements 1 NO+1 NC with M12 plug 4-pole Pin1=21, Pin2=22 Pin3=13, Pin4=14, required solenoid 3SE6704-1BA coupling with connection cable 5 m 3SX5601-3SB54

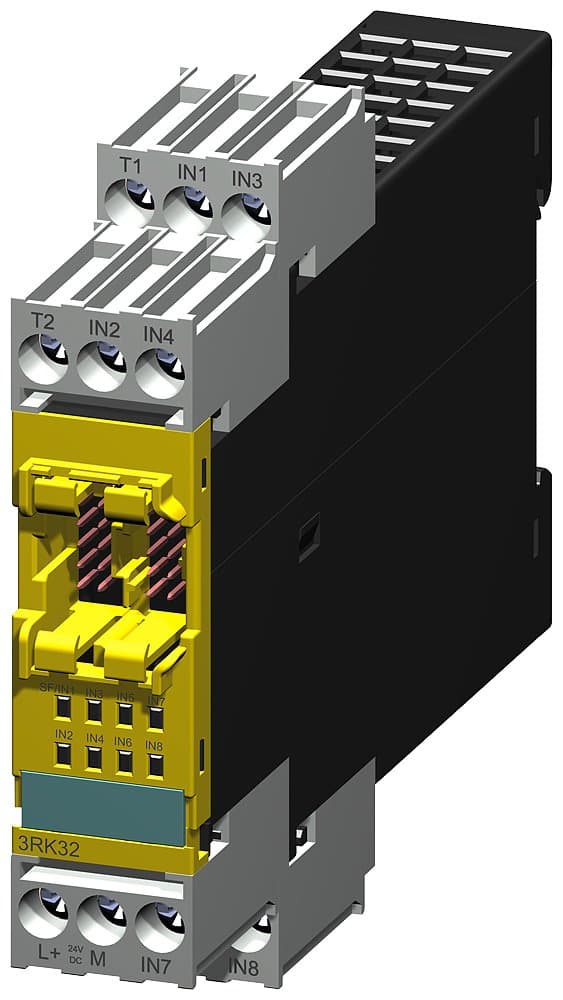

SIRIUS, Expansion module 3RK32 for modular safety system 3RK3 4/8 F-DI, 24 V DC parameters can be set via MSS ES, 22.5 mm width, bolt-type terminal connection, up to SIL 3 (IEC 61508) to performance level E (ISO 13849-1), no connection cable included.

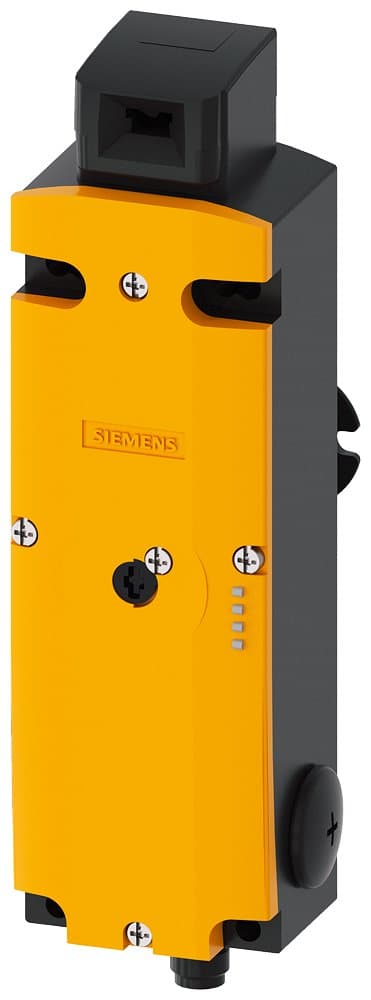

Safety Journey Switch with a Closed Mechanism, Clamping Force 2600 N. It has 5 approach directions. The metal housing is equipped with an M12 connector. ASIsafe is integrated. - Channel 1 = Actuator 1NC - Channel 2 = Magnet 1NC Spring Locking. Escape release mechanism at the back and auxiliary front release. Magnetic voltage 24V AC/DC. The actuator is monitored by 2NC/1NO. The magnet is monitored by 2NC/1NO. Suitable separator needed.

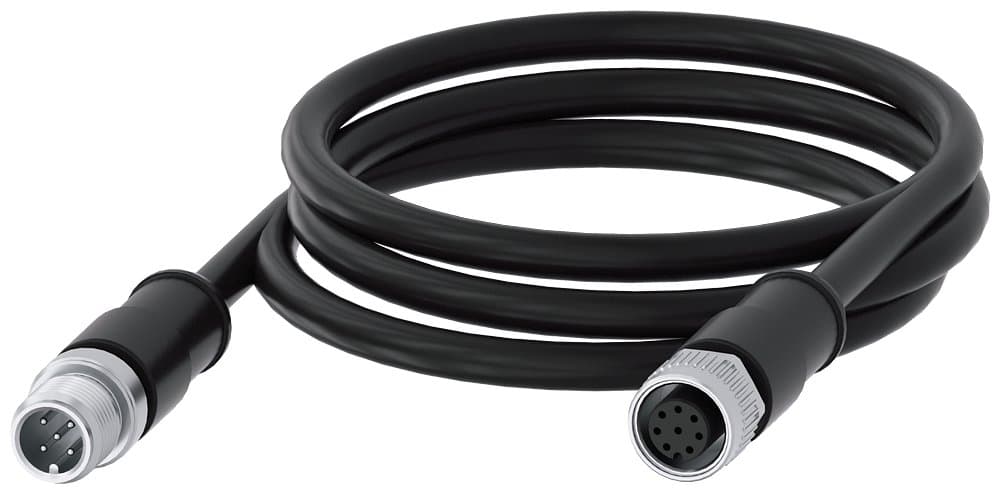

Adapter cable for RFID safety switch 3SE63, M12 connector, 8-pole, 50 cm

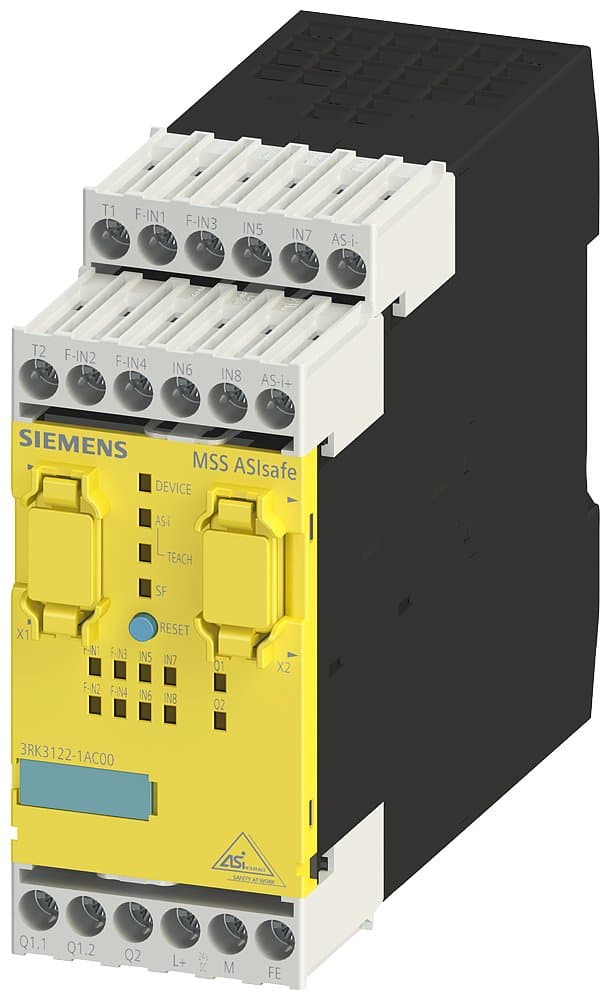

The central module 3RK3 ASIsafe extended is suitable for modular safety systems 3RK3.

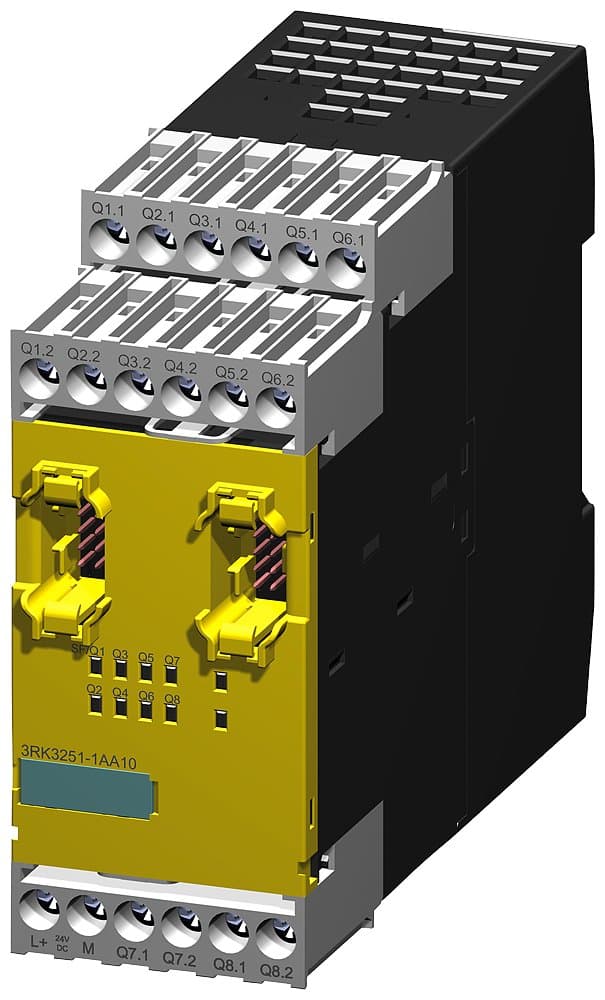

SIRIUS, Expansion module 3RK32 for modular safety system 3RK3 4/8 F-RO, 24 V DC/1 A can be parameterized via MSS ES. Structure width of 45 mm. Bolt-type terminal connection. Up to SIL 3 (IEC 61508) and performance level E (ISO 13849-1). No connection cable included.

SIRIUS safety relay safety-oriented Standstill monitoring 230 V AC, 45 mm Spring-type terminal EC instantaneous: 3 NO + 1 NC EC delayed: 0 SC: 3 Auto-start Basic unit max. error category EN 954-1: 4 Maximum achievable PL according to EN 13849-1: Maximum achievable SIL according to IEC 61508: 3

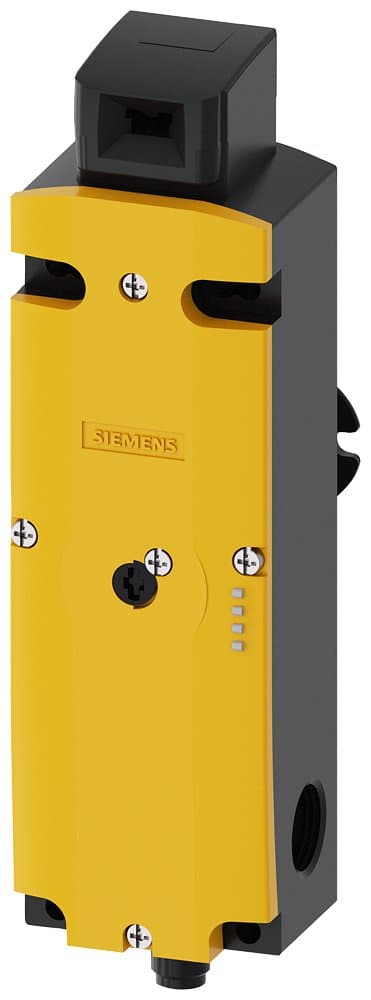

Safety position switch with a closing device, clamping force 1300N.

magnetically operated switch contact block contact block, rectangular small 25 x 33 mm, contact elements 1 NO+1 NC, with 3 m cable

Detachable terminals, 4-pole, pluggable terminals up to 2x1.5 mm².

SIRIUS, Expansion module 3RK32 for modular safety system 3RK3 4/8 F-DI, 24 V DC parameters can be set via MSS ES, 22.5 mm width, cage clamp terminal, up to SIL 3 (IEC 61508), to performance level E (ISO 13849-1), no connection cable included.
