CKD Corporation

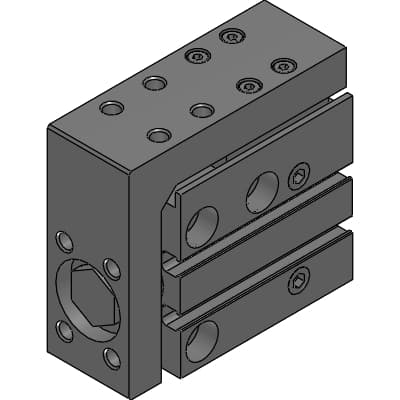

The LCV-25-10-T0H-R(0) linear slide cylinder from CKD is a high-performance, double-acting pneumatic cylinder designed for precision applications. It features a bore size of 25 mm, a standard stroke length of 10 mm, and operates with a working piston speed of 50 to 500 mm/s. This cylinder is ideal for use in PLC and relay systems, ensuring reliable and efficient operation.

"CKD LCV-20-10(0) Linear Slide Cylinder: High precision, flexible design, and various stopper options. Ideal for Z-axis applications and human-centered manufacturing."

The CKD LMG-16-5 is a high-rigidity linear slide cylinder designed for easy installation and compact size. It is ideal for semiconductor manufacturing and precision mechanisms, offering a reliable solution for Z-axis applications.

The CKD LMG-6-5-F2AH-R linear slide cylinder features a 6mm bore size, double-acting operation, and a working piston speed of 30-500 mm/s. It is designed for precision applications and requires minimal maintenance.

The CKD LMG-20-5-F2AH-R linear slide cylinder is a high-precision, double-acting pneumatic cylinder designed for applications requiring precise control and minimal energy absorption. It features a bore size of 20mm and a stroke length of 5mm, making it suitable for a variety of industrial uses.

The CKD LCV-20-10-T0H-R(0) linear slide cylinder offers a 20mm bore size and 10mm stroke length, compatible with T0H/T0V proximity switches. Ideal for PLC and relay applications, ensuring high precision and reliability.

High-precision, double-acting linear slide cylinder with ø12 bore and 10mm stroke. Suitable for compressed air applications, ensuring reliable performance and durability.

The CKD LCV-16-10-T0H-R(0) linear slide cylinder is a high-performance pneumatic actuator featuring a 16mm bore size and a standard stroke length of 10mm. It operates with compressed air, offering reliable and efficient energy absorption, making it suitable for various industrial applications.

The CKD LMG-10-5-F2AH-R linear slide cylinder offers precision and reliability with its 10 mm bore size, double-acting operation, and a maximum working pressure of 0.7 MPa. Suitable for high-speed and shockless applications, this cylinder ensures smooth and accurate movements.

The CKD LMG-10-5 linear guide lock is designed for high precision and energy efficiency, featuring a holding force of 1,150 N and locking torque of 68 N·m. It is perfect for linear drives and ensures reliable operation while saving energy.

The CKD LCV-8-10-F2H-R(0) Linear Slide Cylinder is a double-acting, compressed air-operated cylinder with a bore size of 8mm and a standard stroke of 10mm. It features rubber cushioning and is suitable for various industrial applications.

The CKD LCV-25-10(0) linear slide cylinder is designed for high-precision applications. It features a bore size of ø25 mm, with a standard stroke length of 10 mm. This cylinder is ideal for use in environments with ambient temperatures ranging from -10 to 60°C, ensuring reliable performance in various conditions.

The CKD LCV-12-10(0) linear slide cylinder is a high-precision, air-powered actuator with a bore size of ø12 mm and a standard stroke length of 10 mm. Suitable for various industrial applications.

The CKD LCV-8-10(0) Linear Slide Cylinder offers high precision and flexibility with its cross-roller guide. Suitable for Z-axis applications, it includes options for rubber cushion stoppers and shock absorbers.

The CKD LMG-20-5 linear slide cylinder is designed for precision and reliability. With a four-row guide ball system, it ensures stable operation and low frictional resistance. Available in various options, including adjustable stroke and shock absorber stoppers, this cylinder is perfect for applications requiring high accuracy and rigidity.

The CKD LMG-6-5 linear slide cylinder is a double-acting, single-rod type designed for high rigidity and versatility. It operates with compressed air and offers a standard stroke length of 5mm, making it suitable for various industrial applications.

The CKD LCV-6-10(0) Linear Slide Cylinder offers high precision and flexibility, making it ideal for semiconductor manufacturing and assembly processes. With double acting operation and compressed air working fluid, this cylinder provides robust and reliable performance. Available in various stroke lengths, it enhances your manufacturing efficiency.

The CKD LMG-16-5-F2AH-R linear slide cylinder offers high-precision air actuation with a bore size of φ16 mm, suitable for double-acting compressed air applications. It features a compact design and reliable performance.

Product Description: The CKD LCV-6-10-F2H-R(0) linear slide cylinder is designed for high-precision applications, featuring a compact stainless steel body and a cross-roller guide for enhanced rigidity and durability. It supports double-acting operation with compressed air, making it suitable for various industrial uses.

The CKD LCV-16-10(0) linear slide cylinder is a high-precision, reliable component designed for smooth motion and precise control. It features a bore size of 16 mm, a buffer stroke of 10 mm, and operates within a temperature range of -10 to 60°C. Suitable for applications in industrial automation and robotics.
