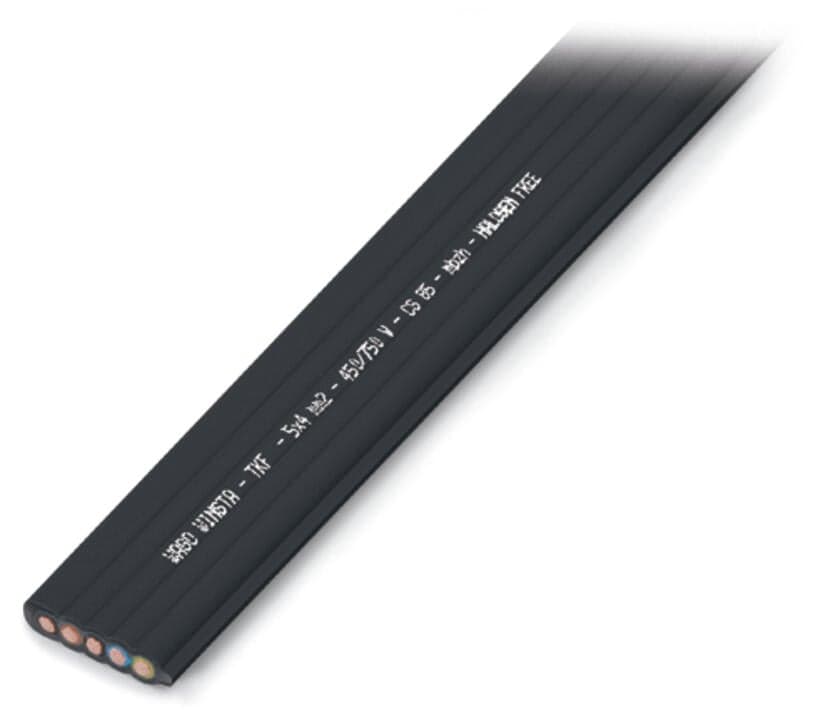

Product Model
897-453
Key Features
- 1Halogen-Free Design: Ensures safety and compliance in high-voltage environments.
- 2High Capacity: Supports up to 5G4 mm², making it suitable for demanding applications.
- 3Triple Insulation: Provides 3L + N + PE insulation for enhanced electrical safety.
- 4Compact and Reliable: Designed for flat cable connections with a robust and compact build.
- 5Versatile Use: Suitable for various high-voltage applications, including industrial and commercial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variable coding | No | Mismating protection | No |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Fire class per EN 50575 | Eca | Fire load | 4.644MJ |
| Sheathed cable color | black | Silicon-free | Yes |
| Rubber cable | No | Weight | 320g |
| Processing temperature | 5 … 40?°C | Continuous operating temperature | -40 … +75?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
| eCl@ss 10.0 | 27-06-01-06 | eCl@ss 9.0 | 27-06-20-02 |
| ETIM 9.0 | EC003250 | ETIM 8.0 | EC003250 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4045454338725 | Customs tariff number | 8544429090 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage | 0.6 / 1?kV |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Number of poles | 5 |
| Wire cross-section | 4mm2 |
Specifications may be subject to change without notice
