Product Model

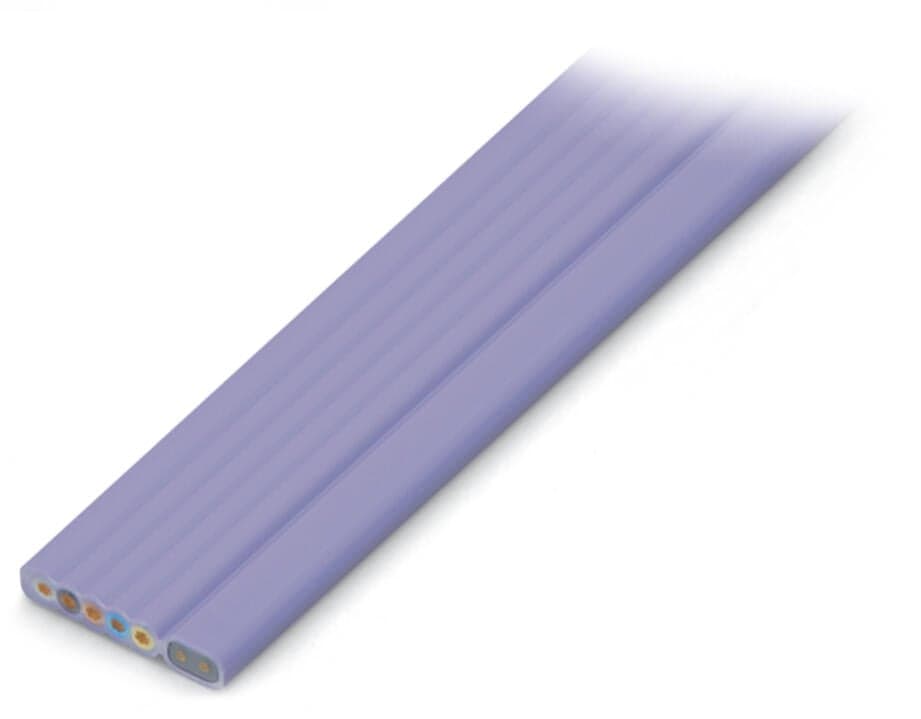

897-261
Key Features
- 1High-Quality Insulation: Features violet PVC insulation for reliable electrical connections.
- 2Versatile Configuration: Includes 5G 2.5 mm² and 2 x 1.5 mm² wire cross-sections for versatile applications.
- 3Compliant with Safety Standards: Meets Eca fire rating and overvoltage category III/pollution degree 3 (III / 3) standards.
- 4Durable Design: Built to withstand processing temperatures from -5 to +40°C and continuous operating temperatures from -35 to +85°C.
- 5Easy Installation: Designed for quick replacement of defective units during ongoing operation, ensuring minimal downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 31.9?mm?/ 1.26?inches | Height | 6.1?mm?/ 0.24?inches |
| Variable coding | No | Mismating protection | No |
| Note (material data) | Information on material specifications can be found here | Color | violet |
| Fire class per EN 50575 | Eca | Fire load | 4.248MJ |
| Silicon-free | Yes | Sheath material | PVC |
| Rubber cable | No | Weight | 350g |
| Copper weight of the pipe | 0.149kg/m | Processing temperature | 5 … 40?°C |
| Continuous operating temperature | -25 … +70?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-06-01-06 |
| eCl@ss 9.0 | 27-06-20-02 | ETIM 9.0 | EC003250 |
| ETIM 8.0 | EC003250 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | CH | GTIN | 4045454267254 |
| Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage | 0.6 / 1?kV | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Number of poles | 5 | Wire cross-section | 2.5mm2 |
| Pole number (2) | 2 | Wire cross-section (2) | 1.5mm2 |
Specifications may be subject to change without notice
