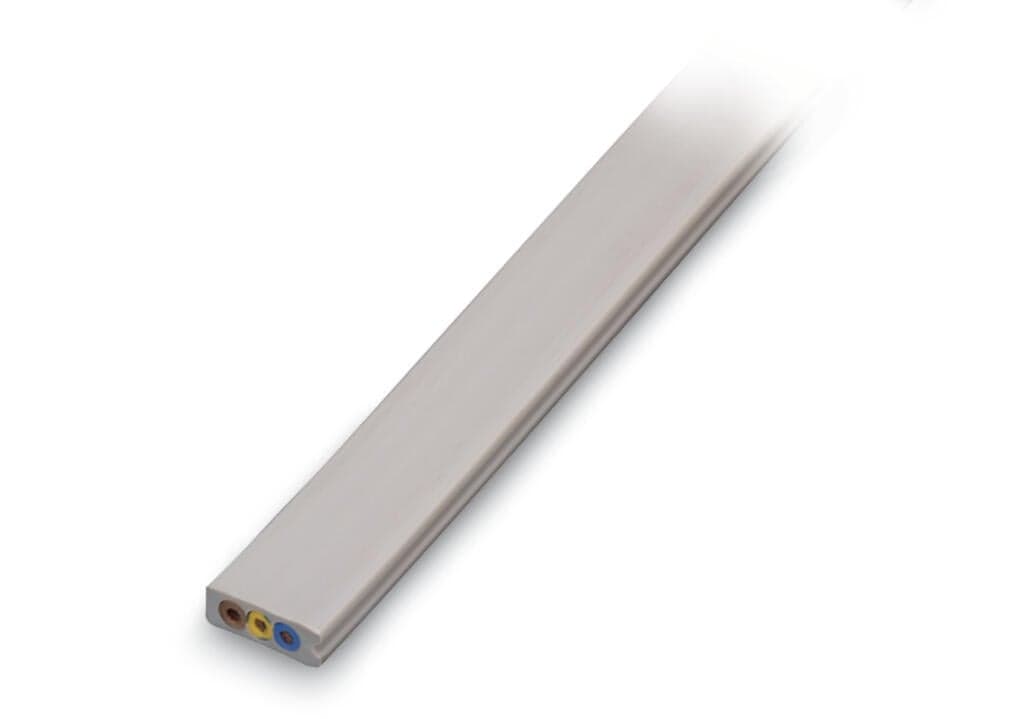

Product Model
897-231
Key Features
- 1High-Quality Eca 3G 2.5 mm² Cable: Ensures robust and reliable electrical connections.
- 2PVC Insulation: Provides excellent protection against environmental factors.
- 3Light Gray Color: Easy to identify and integrate into your system.
- 4RoHS Compliant: Meets stringent environmental regulations for sustainable use.
- 5Versatile Application: Suitable for a wide range of industrial and commercial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 16.9?mm?/ 0.66?inches | Height | 6.5?mm?/ 0.26?inches |
| Variable coding | No | Mismating protection | No |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Fire class per EN 50575 | Eca | Fire load | 2.099MJ |
| Silicon-free | Yes | Sheath material | PVC |
| Rubber cable | No | Weight | 160g |
| Copper weight of the pipe | 0.072kg/m | Processing temperature | 5 … 40?°C |
| Continuous operating temperature | -25 … +70?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-06-01-06 |
| eCl@ss 9.0 | 27-06-20-02 | ETIM 9.0 | EC003250 |
| ETIM 8.0 | EC003250 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | CH | GTIN | 4045454004170 |
| Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage | 0.6 / 1?kV | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Number of poles | 3 | Wire cross-section | 2.5mm2 |
Specifications may be subject to change without notice
