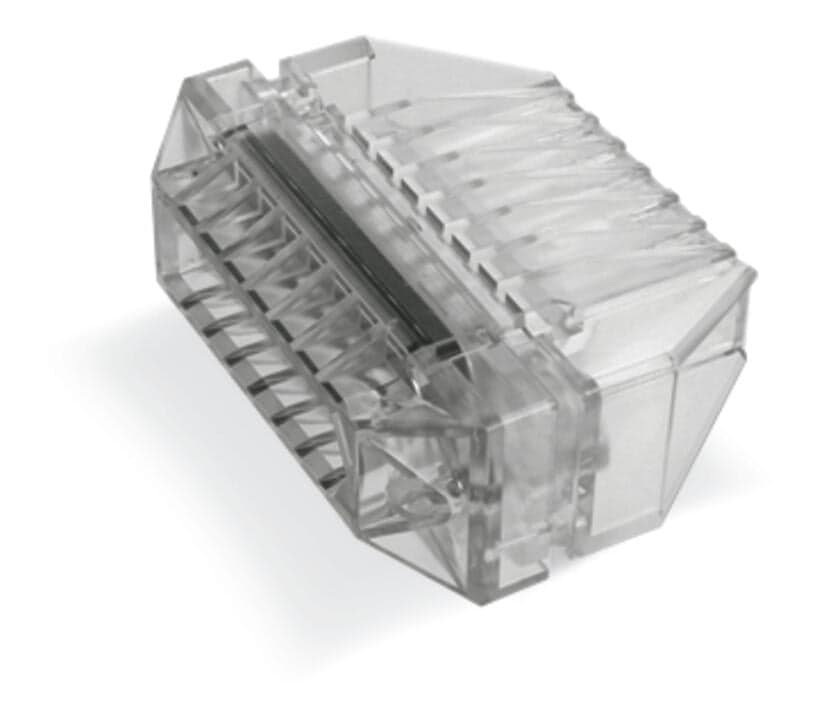

Product Model
897-1650
Key Features
- 1Securely connects flat cables up to 16 mm².
- 2Ideal for 5-pole applications.
- 3Made from high-quality plastic for durability.
- 4Easy to install with a snap-in design.
- 5Meets high standards of electrical safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variable coding | No | Suitable | for flat cable 5 x 16 mm2 |
| Note (material data) | Information on material specifications can be found here | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 1.116MJ |
| Weight | 53.9g | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
| ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 4?pcs | Packaging type | box |
| Country of origin | CH | GTIN | 4045454006402 |
| Customs tariff number | 8547200000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
