Product Model

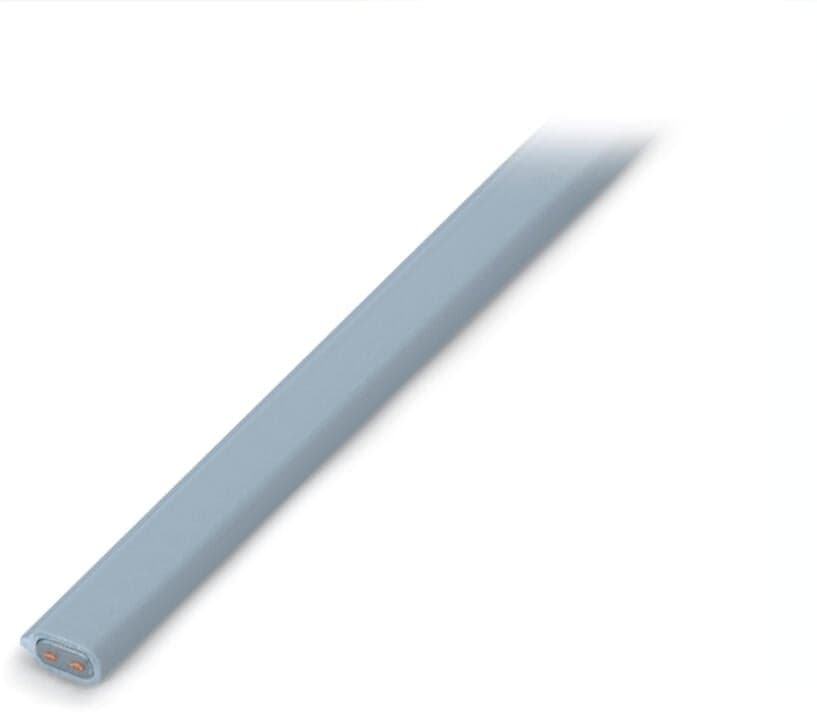

897-122
Key Features
- 1Halogen-free and Fire Class Dca: Ensures safe use and compliance with fire safety standards.
- 2Convenient Installation: Easy to install and commission, saving time on construction sites.
- 3High Voltage Rating: Supports up to 50 V, suitable for various industrial applications.
- 4Light Gray Color: Easy to identify and integrate into your system.
- 5Durable and Reliable: Built with high-quality materials for continuous operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 10.9?mm?/ 0.43?inches | Height | 6.1?mm?/ 0.24?inches |
| Variable coding | No | Mismating protection | No |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Fire class per EN 50575 | Dca | Fire load | 1.584MJ |
| Halogen-free | Yes | Silicon-free | Yes |
| Rubber cable | No | Weight | 86g |
| Copper weight of the pipe | 0.029kg/m | Processing temperature | 5 … 40?°C |
| Continuous operating temperature | -25 … +70?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-06-01-06 |
| eCl@ss 9.0 | 27-06-20-02 | ETIM 9.0 | EC003250 |
| ETIM 8.0 | EC003250 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | CH | GTIN | 4045454267339 |
| Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Number of poles | 2 |
| Wire cross-section | 1.5mm2 |
Specifications may be subject to change without notice
