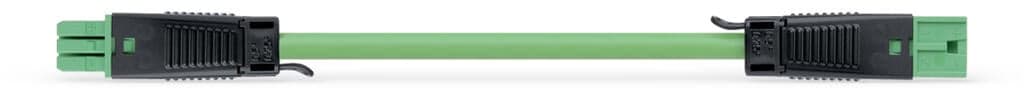

Product Model
894-8392/073-106
Key Features
- 1Operates reliably from -35°C to +85°C.
- 2Ensures safety and compliance with fire regulations.
- 3Convenient and time-saving, ready for immediate use.
- 4Easy to connect and disconnect with minimal effort.
- 5Meets environmental standards for sustainable electronics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 2 |
| Width | 14.1?mm?/ 0.555?inches | Height | 11.1?mm?/ 0.437?inches |
| Total length | 1m | Technology | KNX |
| Coding | E | Variable coding | No |
| Marking | 1+ 2- | Potential Marking | 1+ 2- |
| Mating force of a plug-in connection | approx. 10 … 15 N | Retention force of a plug-in connection | when locked: > 80N |
| Unmating force of a plug-in connection | Unlocked: approx. 15 … 20 N | Number of mating cycles | 200 |
| Connection type | Socket - Plug | Type of pre-assembled cable | Interconnecting cable |
| Cable type | Y-H(St)Hh 1x2x0.8 | Protection type | IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.) |
| Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
| Locking of plug-in connection | none | Note (material data) | Information on material specifications can be found here |
| Color | green | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire class per EN 50575 | Cca | Contact material | Copper alloy; surface-treated |
| Contact plating | Tin | Connector color | green |
| Strain relief color | black | Sheathed cable color | green |
| Printing color of sheathed cable | black | Halogen-free | Yes |
| Silicon-free | Yes | Sheath material | Halogen-free |
| Rubber cable | No | Weight | 49g |
| Copper weight of the pipe | 0.021kg/m | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
| ETIM 9.0 | EC002587 | ETIM 8.0 | EC002587 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | unpacked | Country of origin | PL |
| GTIN | 4055143946537 | Customs tariff number | 8544429090 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 50V | Rated impulse voltage (III / 3) | 0.8kV |
| Rated current | 3A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Note on contact resistance | Approx. 3 m? contact resistance | Conductor diameter | 0.8?mm |
| Number of poles | 2 |
Specifications may be subject to change without notice
