Product Model

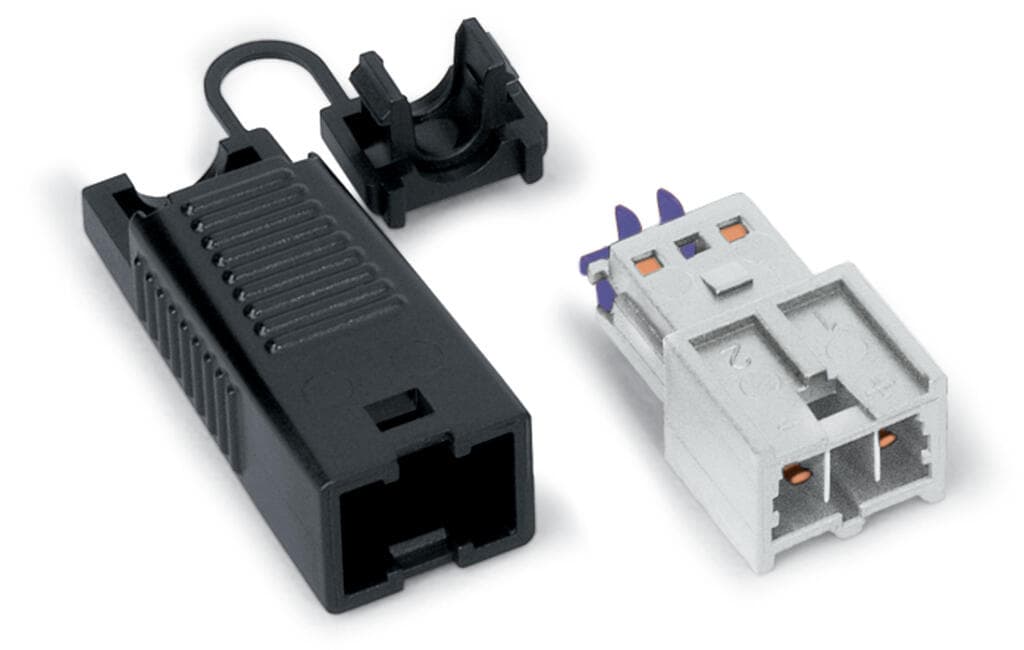

893-1032
Key Features
- 1Reliable Electrical Connections: The WAGO 893-1032 plug ensures secure and durable connections with its strain relief housing.
- 2Easy Installation: Push-in actuation type makes installation quick and effortless.
- 3High Voltage Rating: Rated for 50 V and 0.8 kV impulse voltage, suitable for demanding applications.
- 4Durable Construction: Made from polyamide 66 (PA 66) with copper alloy contacts for long-lasting performance.
- 5Versatile Compatibility: Compatible with sheathed cables of 5 to 7 mm diameter, offering flexibility in various setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 2 |
| Width | 14.1?mm?/ 0.555?inches | Height | 11.1?mm?/ 0.437?inches |
| Depth | 47.5?mm?/ 1.87?inches | Technology | KNX |
| Use | KNX | Coding | F |
| Variable coding | No | Marking | 1+ 2- |
| Potential Marking | 1+ 2- | Mating force of a plug-in connection | approx. 10 … 15 N |
| Retention force of a plug-in connection | Locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 15 … 20 N |
| Number of mating cycles | 200, without resistive load | Protection type | IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.) |
| Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
| Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | Can be retrofitted | Locking of plug-in connection | locking lever |
| Strain relief | strain relief housing | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper alloy; surface-treated | Contact plating | Tin |
| Fire load | 0.171MJ | Connector color | light gray |
| Strain relief color | black | Weight | 5.7g |
| Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
| eCl@ss 10.0 | 27-44-06-05 | eCl@ss 9.0 | 27-44-06-05 |
| ETIM 9.0 | EC002560 | ETIM 8.0 | EC002560 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4045454267452 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 50V | Rated impulse voltage (III / 3) | 0.8kV |
| Rated current | 3A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Note on contact resistance | Approx. 3 m? contact resistance | Connection technology | PUSH WIRE? |
| Actuation type | Push-in | Conductor diameter | 0.8?mm |
| Strip length | 9?mm?/ 0.35?inches | Number of poles | 2 |
| Connectable sheathed cable diameter | 5 … 7?mm | Conductor entry direction to mating direction | 0° |
