Product Model

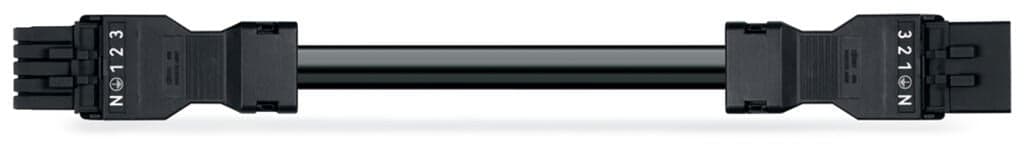

891-8995/016-101
Key Features
- 1Universal Compatibility: Compatible with various conductor types, including solid, stranded, and fine-stranded conductors.
- 2Easy Installation: Tool-free and twist-free terminations simplify the installation process.
- 3High Current Capacity: Handles up to 13 amperes, making it suitable for demanding electrical applications.
- 4Durable Construction: Made with polyamide insulation and copper or copper alloy contact material for long-lasting performance.
- 5Reliable Connection: Ensures fast and reliable electrical connections with a maximum operating temperature of 85°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 5 |
| Pin spacing | 4.4?mm?/ 0.173?inches | Width | 26.7?mm?/ 1.051?inches |
| Height | 15.8?mm?/ 0.622?inches | Total length | 1m |
| Use | General mains applications | Coding | A |
| Variable coding | No | Marking | N ? 1 2 3 |
| Potential Marking | N ? 1 2 3 | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
| Number of mating cycles | 200, without resistive load | Connection type | Socket - Plug |
| Type of pre-assembled cable | Interconnecting cable | Cable type | H05Z1Z1-F 5G1.5 |
| Protection type | IP20; IP40 when mated | Mismating protection | Yes |
| Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
| Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Insulation material (main housing) | Polyamide (PA66) | Fire class per EN 50575 | Eca |
| Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
| Fire load | 30.046MJ | Connector color | black |
| Strain relief color | black | Sheathed cable color | black |
| Printing color of sheathed cable | white | Halogen-free | Yes |
| Silicon-free | Yes | Sheath material | Halogen-free |
| Rubber cable | No | Weight | 174.9g |
| Copper weight of the pipe | 0.072kg/m | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
| eCl@ss 10.0 | 27-44-06-04 | eCl@ss 9.0 | 27-44-06-04 |
| ETIM 9.0 | EC002587 | ETIM 8.0 | EC002587 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | unpacked | Country of origin | PL |
| GTIN | 4055143399579 | Customs tariff number | 85444290900 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 13A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Number of poles | 5 |
| Wire cross-section | 1.5mm2 |
