Product Model

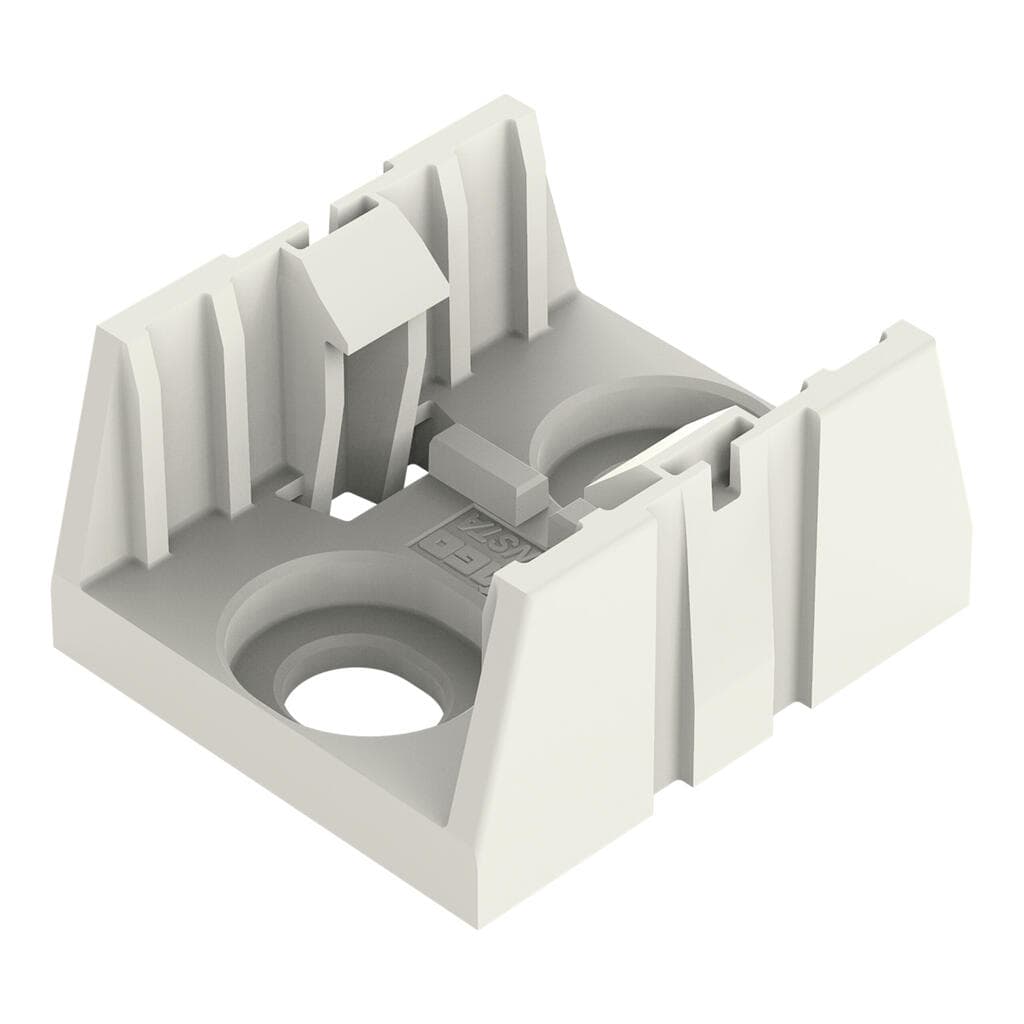

890-673
Key Features
- 1Operates continuously between -35 to +85°C.
- 2Meets stringent safety standards with a fire load of 0.057MJ.
- 3Easy installation with a secure screw mounting system.
- 4Made from durable Polyamide (PA66) for reliable electrical connections.
- 5Manufactured in Germany ensuring high-quality components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting type | Screw mounting | Suitable | for distribution connectors (except T-distribution connectors); 3-pole |
| Note (material data) | Information on material specifications can be found here | Color | white |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.057MJ | Weight | 1.9g |
| Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
| eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454684587 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption | Number of poles | 3 |
Specifications may be subject to change without notice
