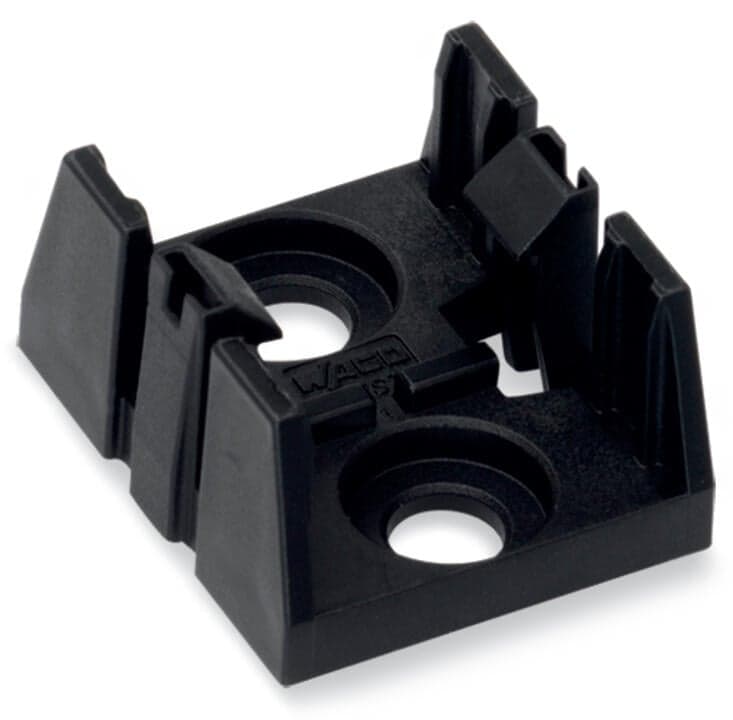

Product Model
890-623
Key Features
- 1Durable Construction: Made from high-quality polyamide (PA66) for long-lasting performance.
- 2Easy Installation: Features a screw mount design for quick and secure installation.
- 3Versatile Use: Suitable for distribution connectors (except T-distribution connectors); ideal for 3-pole applications.
- 4Fire-Resistant: Meets UL94 V0 fire load standards, ensuring safety in various environments.
- 5Compact Design: Weighs only 1.890 g, making it perfect for space-sensitive installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting type | Screw mounting | Suitable | for distribution connectors (except T-distribution connectors); 3-pole |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.092MJ | Weight | 1.9g |
| Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
| eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454684594 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption | Number of poles | 3 |
Specifications may be subject to change without notice
