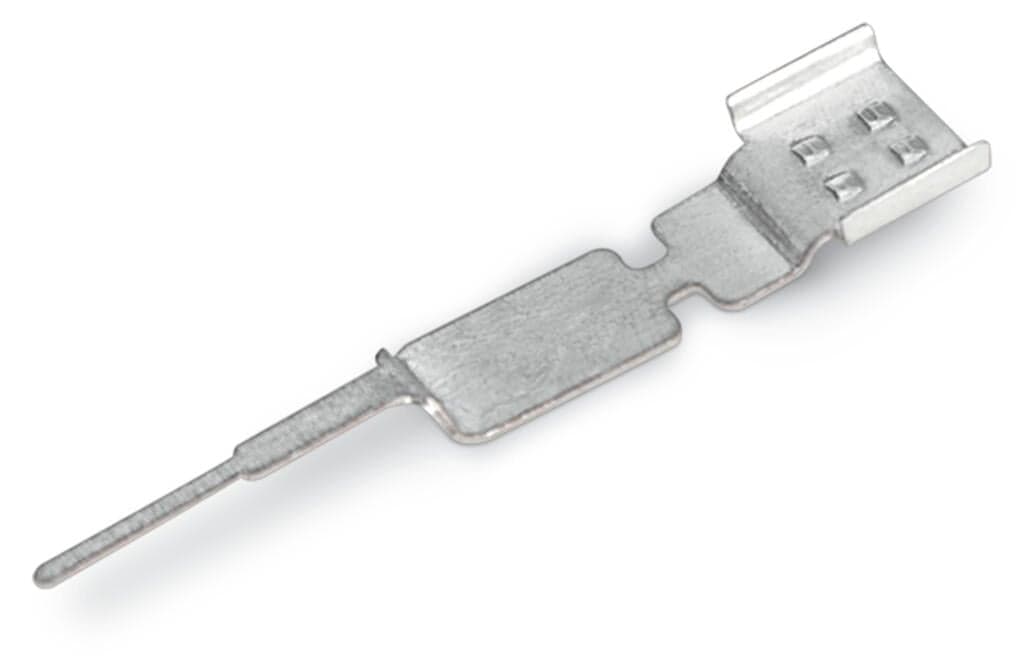

Product Model
890-523
Key Features
- 1Designed for reliable connections in various applications.
- 2Quick and simple to install with no tools required.
- 3Meets international standards for safety and performance.
- 4Suitable for both solid and fine-stranded conductors.
- 5Compact size for efficient use in junction boxes and distribution systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for socket and plug | Note (material data) | Information on material specifications can be found here |
| Color | silver-colored | Flammability class per UL94 | V0 |
| Weight | 1.1g | Material | Copper (SE Cu); special tin coating |
| Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
| eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(1)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454730420 | Customs tariff number | 7409909060 |
| RoHS Compliance Status | Compliant,No Exemption | Number of poles | 3 |
Specifications may be subject to change without notice
