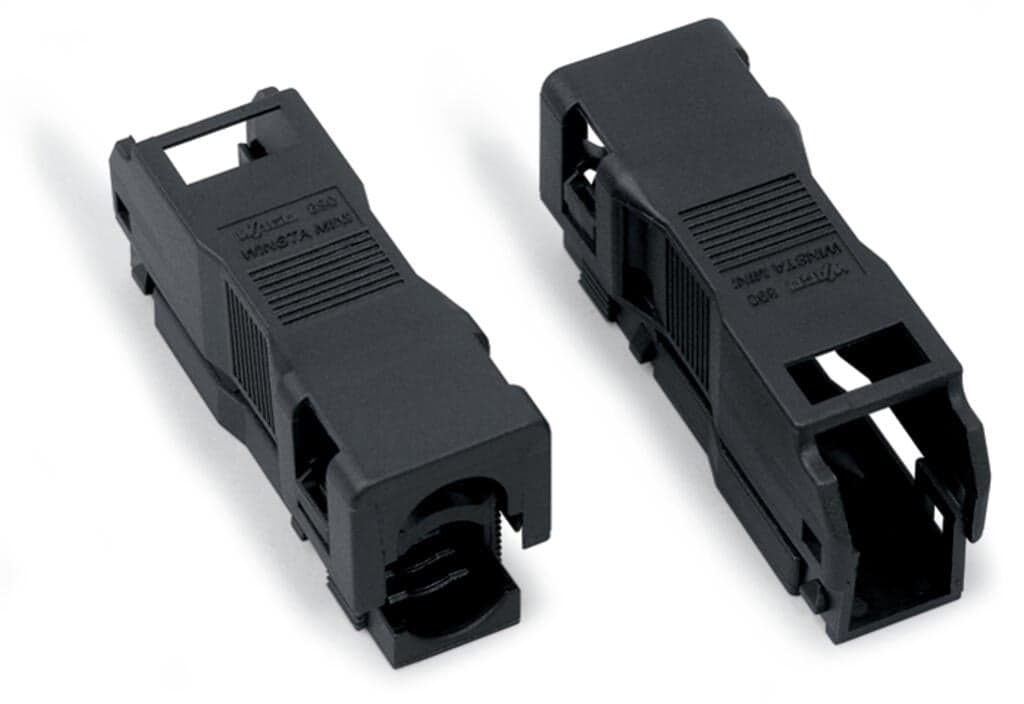

Product Model
890-502
Key Features
- 1Compact design for tight spaces.
- 2Low-maintenance installation with Push-in CAGE CLAMP technology.
- 3Suitable for cables with diameters 3.8-8.2 mm.
- 4Error-free electrical installation with strain relief housing.
- 5Maintenance-free and efficient pluggable connection system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pin spacing | 4.4 mm / 0.173 inches | Width | 15.6?mm?/ 0.614?inches |
| Height | 13.2?mm?/ 0.52?inches | Depth | 44.8?mm?/ 1.764?inches |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.114MJ | Weight | 2.9g |
| Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
| eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454233310 | Customs tariff number | 8538908160 |
| RoHS Compliance Status | Compliant,No Exemption | Number of poles | 2 |
| Connectable sheathed cable diameter | 3.8 … 8.2?mm | Strip length (outer insulation) | 32mm |
Specifications may be subject to change without notice
