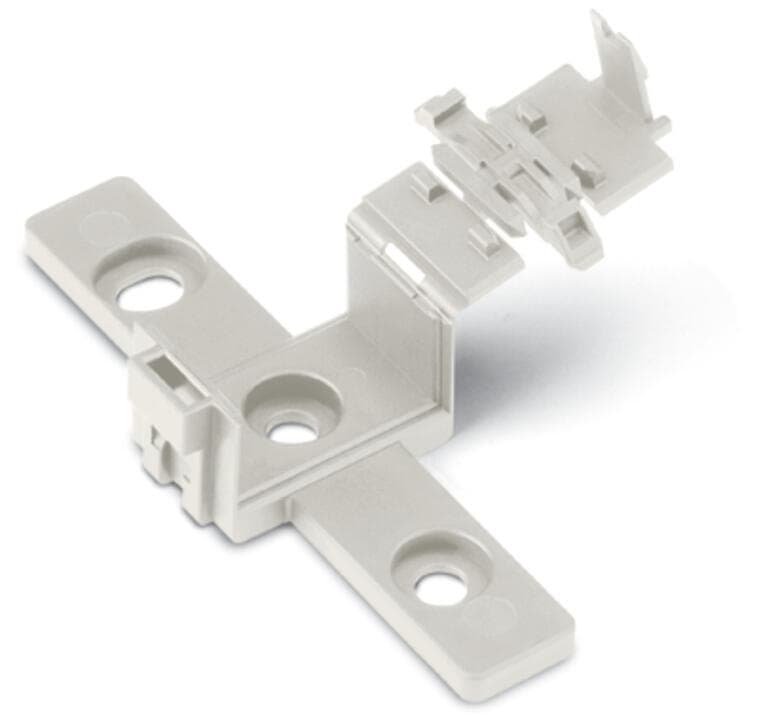

Product Model
890-311
Key Features
- 1Compatible with WAGO Winsta Mini 890 series.
- 2Designed for quick and easy installation of flying leads.
- 3Made from high-quality materials for long-lasting performance.
- 4Suitable for various electrical applications, including grid lighting and flush mounting.
- 5Available with a standard shipping time of 3 days.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for flying leads; 2- to 5-pole | Note (material data) | Information on material specifications can be found here |
| Color | white | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.149MJ |
| Weight | 5g | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
| ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4050821255109 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
