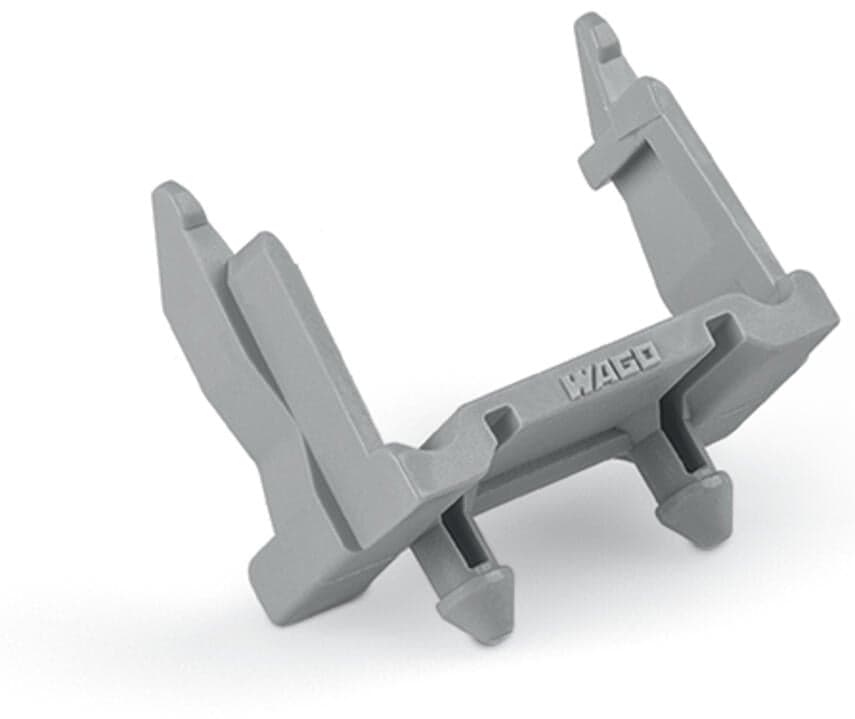

Product Model
890-304
Key Features
- 1Made from high-quality polyamide (PA66) for long-lasting performance.
- 2Suitable for socket and plug connections, ensuring compatibility in various electrical setups.
- 3Operates within a wide temperature range of -35°C to +85°C, making it suitable for demanding environments.
- 4Meets stringent safety standards, ensuring minimal risk of fire.
- 5Lightweight at 0.7 grams, perfect for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for socket and plug | Note (material data) | Information on material specifications can be found here |
| Color | gray | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.02MJ |
| Weight | 0.7g | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
| ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(50)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143838566 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
| Number of poles | 4 |
Specifications may be subject to change without notice
