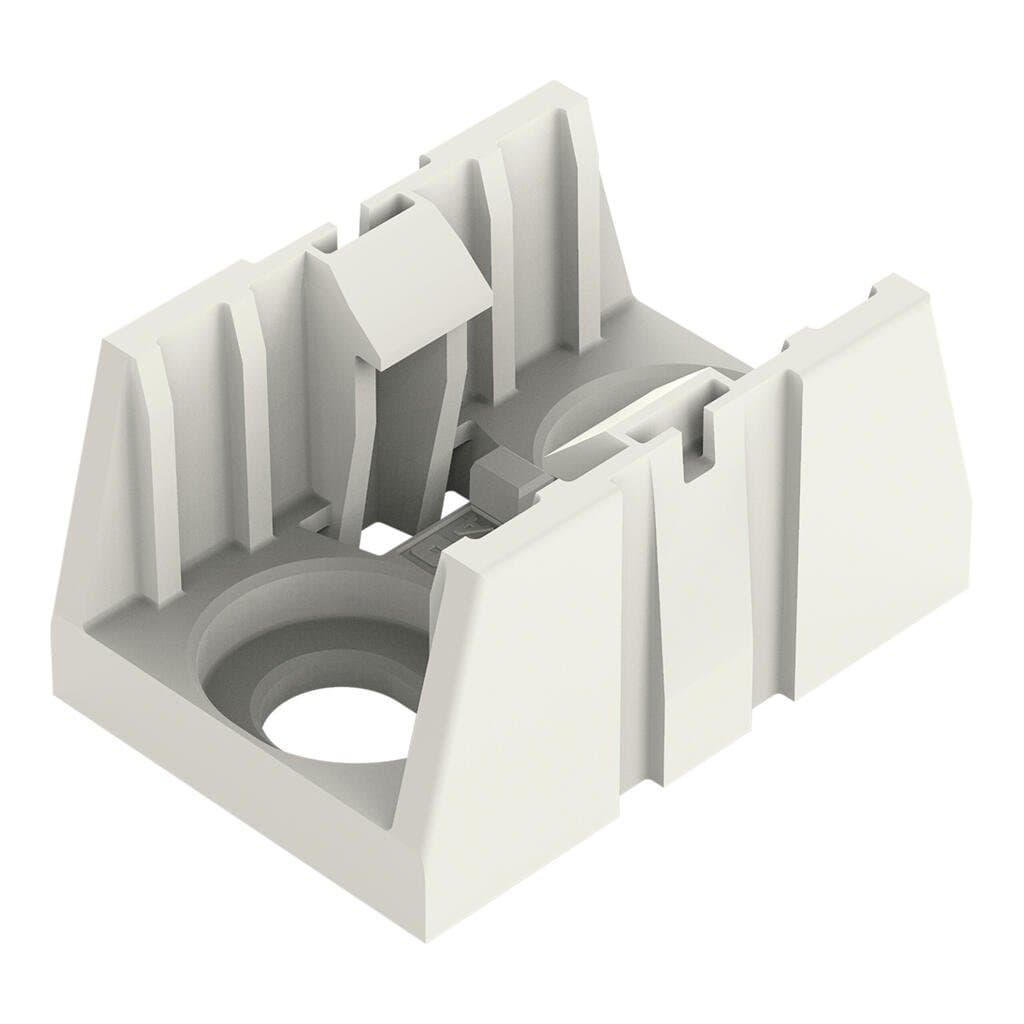

Product Model
890-1672
Key Features
- 1Handles up to 250 V/4 kV with a current rating of 16 A.
- 2Compatible with wire sizes from 0.25 to 1.5 mm², including stranded and solid wires.
- 3Features CAGE CLAMP®S connection for secure and reliable connections.
- 4Includes strain relief housing to protect against cable damage and wear.
- 5Snap-in device connection makes installation quick and hassle-free.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variable coding | No | Mounting type | Screw mounting |
| Suitable | for distribution connectors (except T-distribution connectors); 2-pole | Note (material data) | Information on material specifications can be found here |
| Color | white | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.049MJ |
| Weight | 1.6g | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
| ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454684617 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
| Number of poles | 2 |
Specifications may be subject to change without notice
