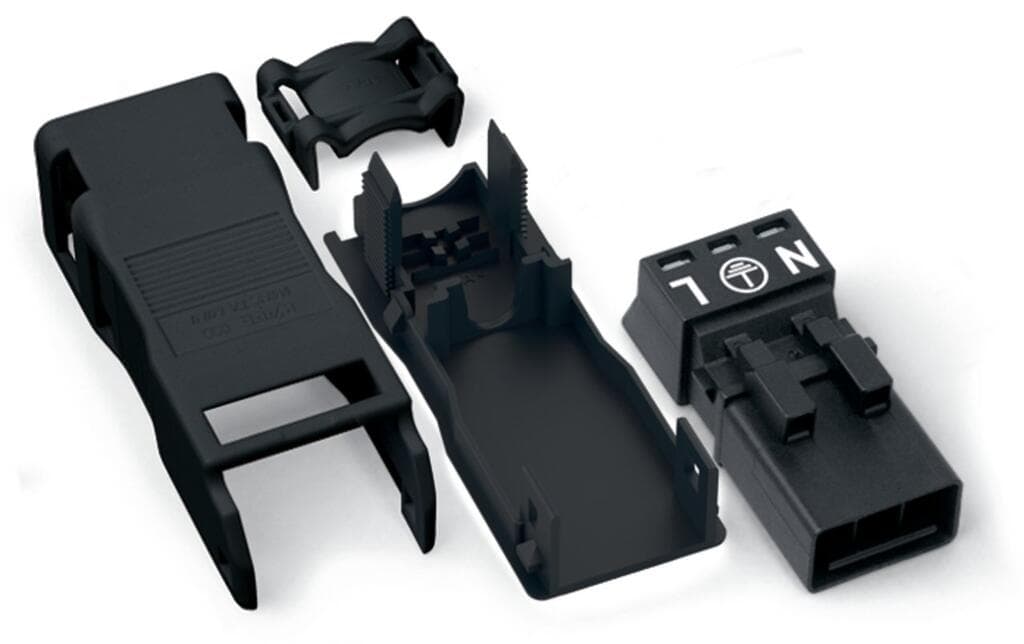

Product Model
890-113
Key Features
- 1Push-in CAGE CLAMP technology simplifies connections.
- 2Protected against mismating and contact damage.
- 3Suitable for various power distribution applications.
- 4Black color with A coding for easy identification.
- 5Ensures safety by preventing users' hands and tools from coming into contact with live elements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 3 | Total number of potentials | 3 |
| PE function | Preceding PE contact | Pin spacing | 4.4?mm?/ 0.173?inches |
| Width | 17.9?mm?/ 0.705?inches | Height | 14?mm?/ 0.551?inches |
| Depth | 63.6?mm?/ 2.504?inches | Use | General mains applications |
| Coding | A | Variable coding | No |
| Marking | N ? L | Potential Marking | N ? L |
| Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | Locked: > 80 N |
| Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
| Protection type | IP40 | Contact type (pluggable connector) | Male connector/plug |
| Connector (connection type) | for conductor | Mismating protection | Yes |
| Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
| Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
| Strain relief | strain relief housing | Note (material data) | Information on material specifications can be found here |
| Color | black | Cover color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
| Fire load | 0.277MJ | Connector color | black |
| Strain relief color | black | Weight | 8.5g |
| Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
| eCl@ss 10.0 | 27-44-06-05 | eCl@ss 9.0 | 27-44-06-05 |
| ETIM 9.0 | EC002560 | ETIM 8.0 | EC002560 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454232900 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated current | 16A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
| Rated current UL 1977 | 14A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
| Nominal cross-section | 1.5 mm2 / 16 AWG | Solid conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG |
| Solid conductor; push-in termination | 0.75 … 1.5?mm2?/ 20 … 16?AWG | Stranded conductor | 0.25 … 1?mm2?/ 22 … 18?AWG |
| Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2?/ 22 … 20?AWG |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.75?mm2?/ 22 … 20?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 20?AWG |
| Strip length | 9?mm?/ 0.35?inches | Number of poles | 3 |
| Conductor entry direction to mating direction | 0° | Strip length (outer insulation) | 40mm |
Specifications may be subject to change without notice
