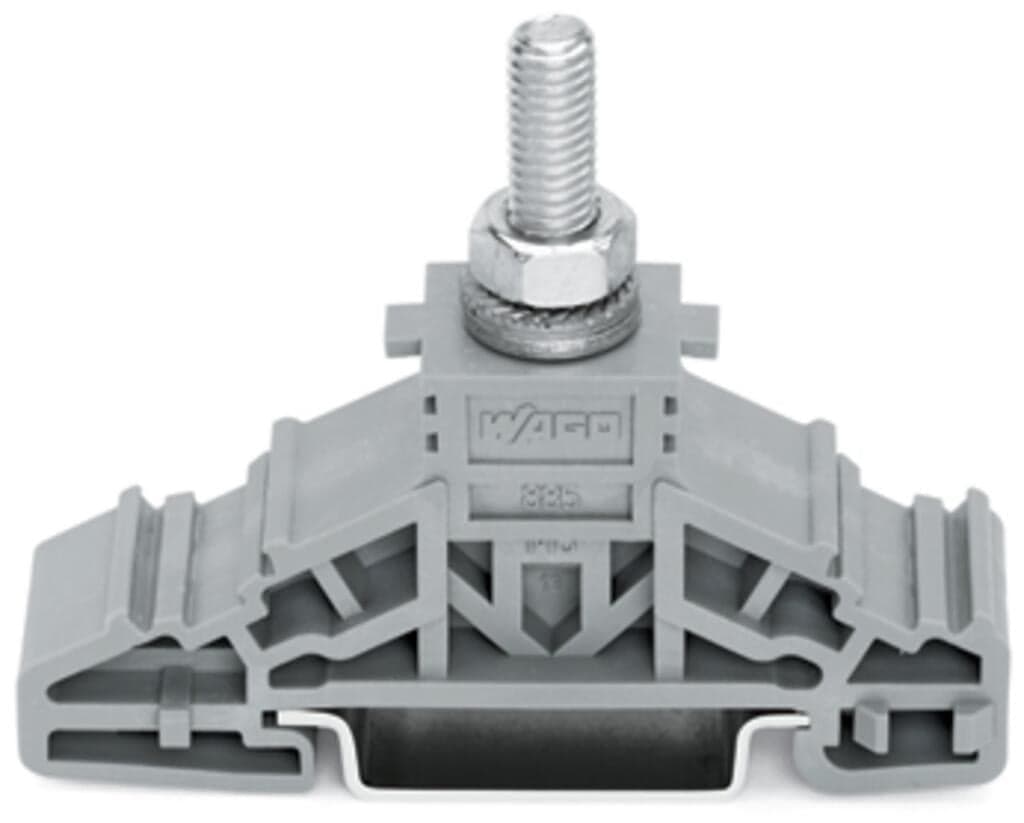

Product Model
885-106
Key Features
- 1Supports up to 125A, ensuring reliable power distribution.
- 2Made from durable polyamide (PA66) for long-lasting performance.
- 3Designed for quick and simple mounting on DIN-35 rail.
- 4Enhances visibility and organization of wiring.
- 5Meets C22.2 No 158 and UL 1059 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 1 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 17.8?mm?/ 0.701?inches |
| Height | 67?mm?/ 2.638?inches | Depth from upper-edge of DIN-rail | 48.7?mm?/ 1.917?inches |
| Tightening torque | 3 … 6?Nm | Mounting type | DIN-35 rail |
| Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.39MJ | Weight | 27.4g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4050821049227 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
| Rated current | 125A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Approvals per | CSA 22.2 No 158 | Power loss, per pole (potential) | 4.062W |
| Rated current I<sub>N</sub> for specified power loss | 125A | Resistance value for specified, current-dependent power loss | 0Ω |
| Connection technology | Bolt-type connection | Actuation type | Open-end, ring, socket wrench; 10 mm |
| Connectable conductor materials | Copper | Clamping range | 2.5 … 35?mm2?/ 14 … 2?AWG |
| Type of cable lugs per DIN 46234 | Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors | Type of cable lugs per DIN 46235 | Cable lugs for compression connectionsCover plate type for copper conductors |
| Thread size | M6 |
Specifications may be subject to change without notice
